Vaill... |
Kondensatschalen und Abgasrohre durchgerostet ! --> Abgasaustritt innerhalb
der Feuerstätte! |

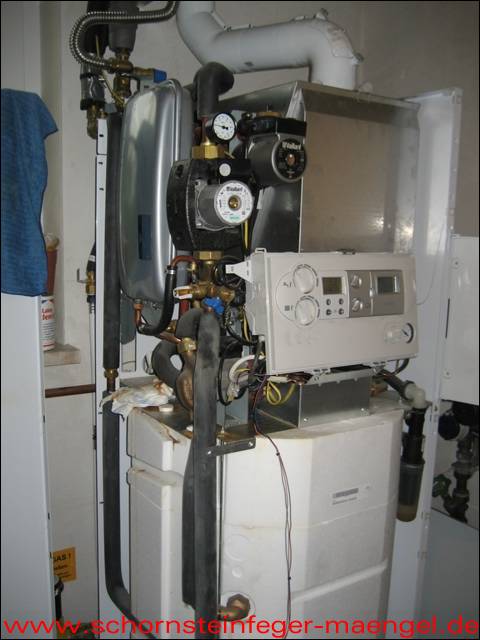

Wärmetauscher durchgebrannt - Abgasaustritt |
![](../photogallery/Brennwert/IMG_4528_small.jpg)

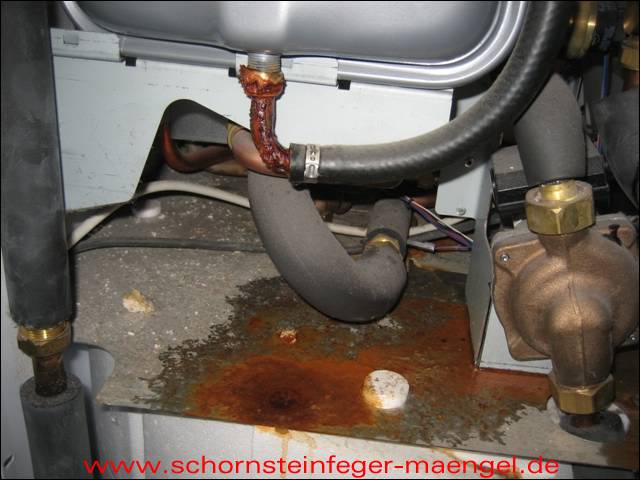

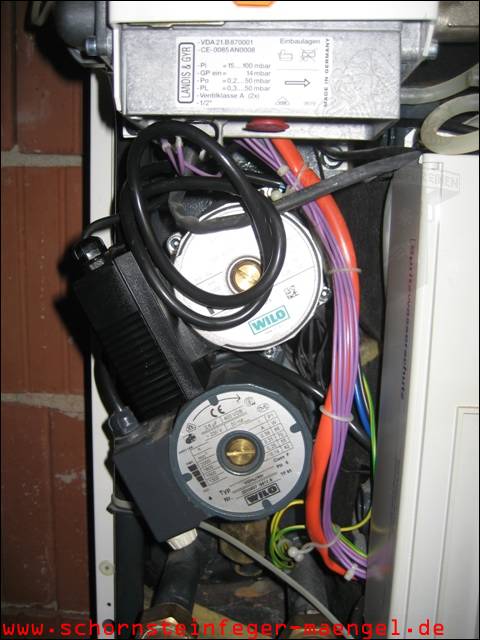

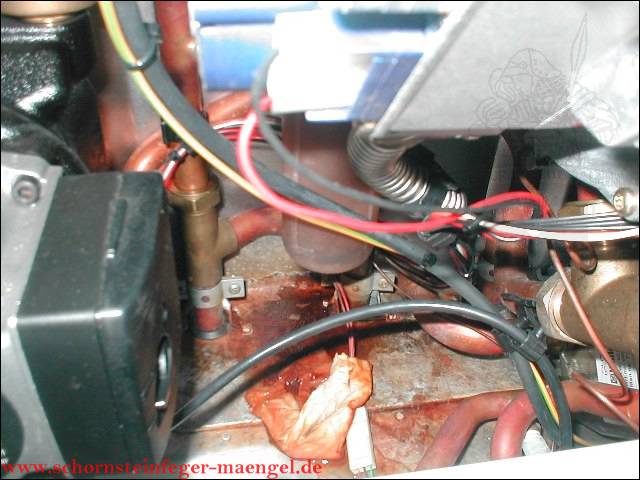

Anschluss am Ausdehnungsgefäß undicht |

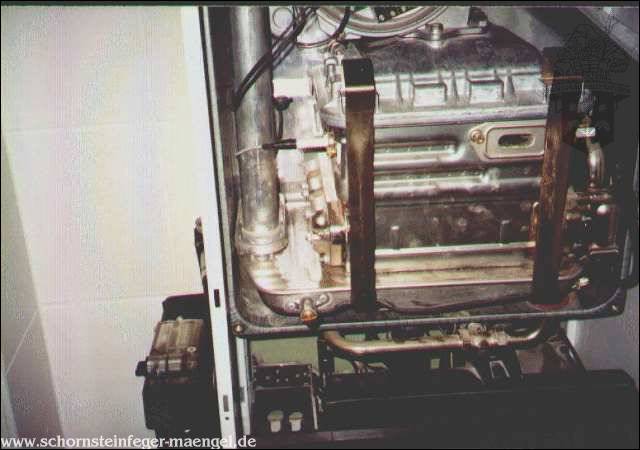

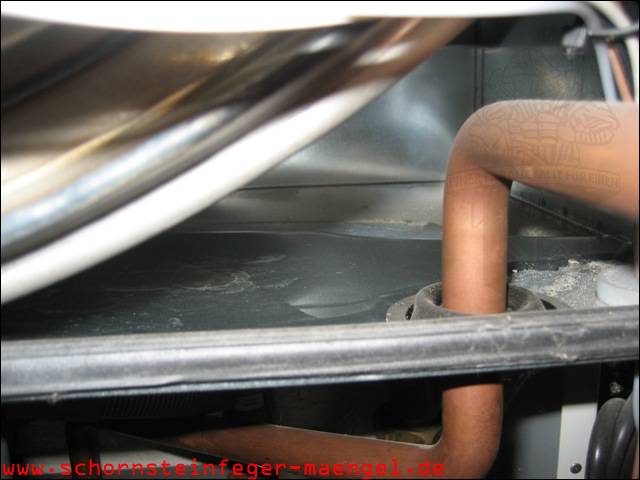

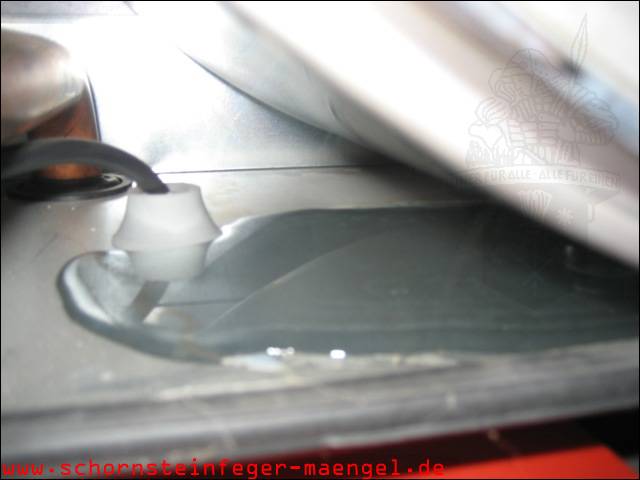

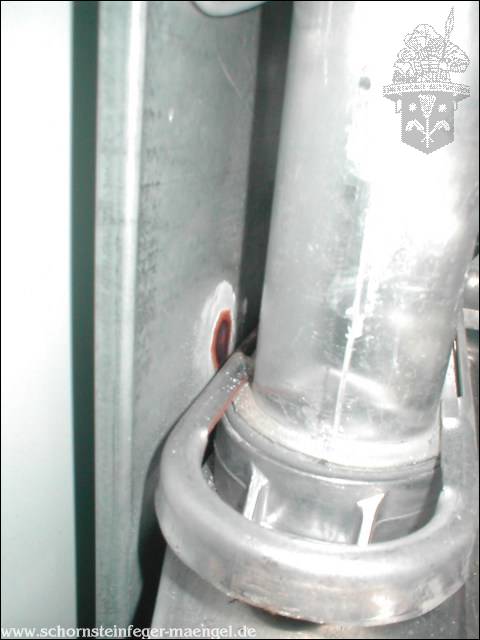

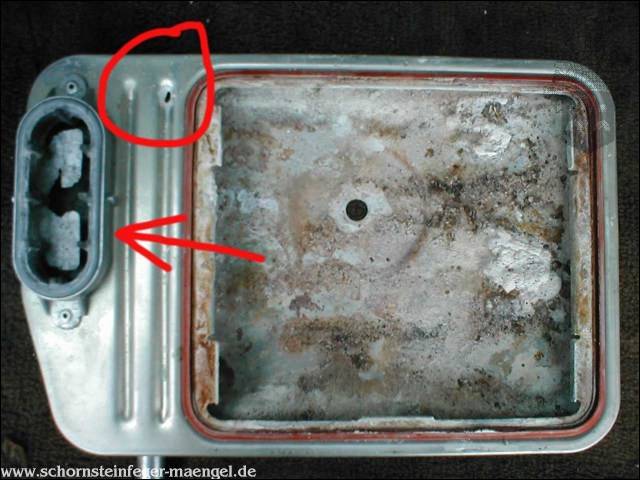

Kondensataustritt innerhalb der Feuerstätte, da Abgasstutzen undicht! |

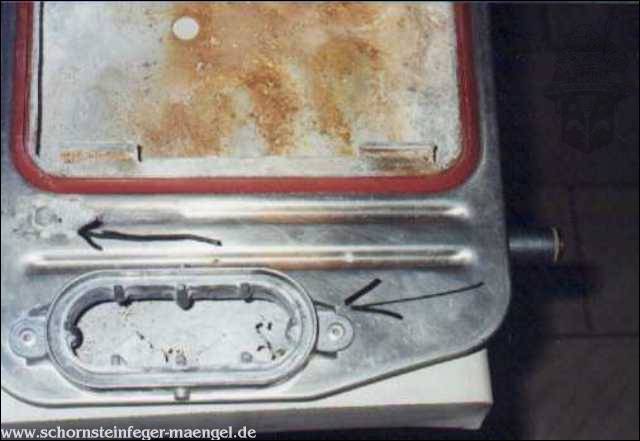

![](../photogallery/Brennwert/b006_small.jpg) ![](../photogallery/Brennwert/b002_small.jpg) ![](../photogallery/Brennwert/b027_small.jpg) ![](../photogallery/Brennwert/b019_small.jpg) |
![](../photogallery/Brennwert/b022_small.jpg) ![](../photogallery/Brennwert/b044_small.jpg) ![](../photogallery/Brennwert/b001_small.jpg) ![](../photogallery/Brennwert/b010_small.jpg) |

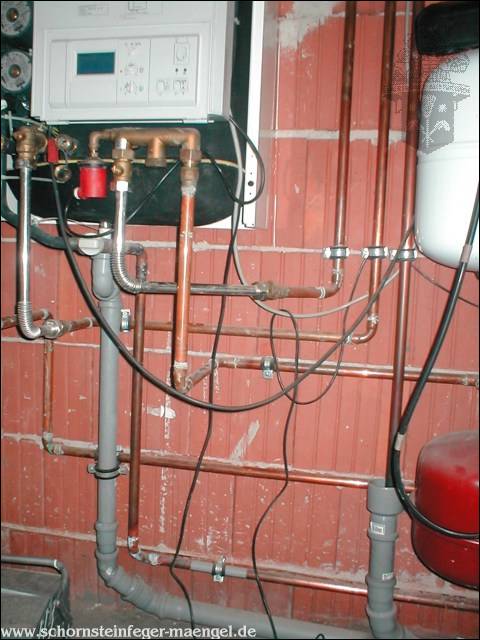

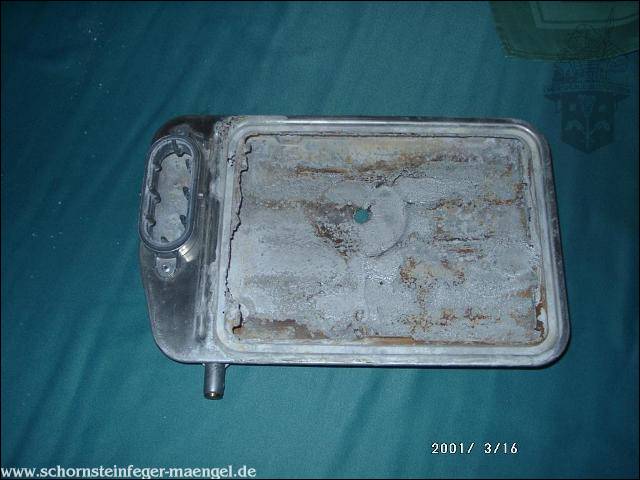

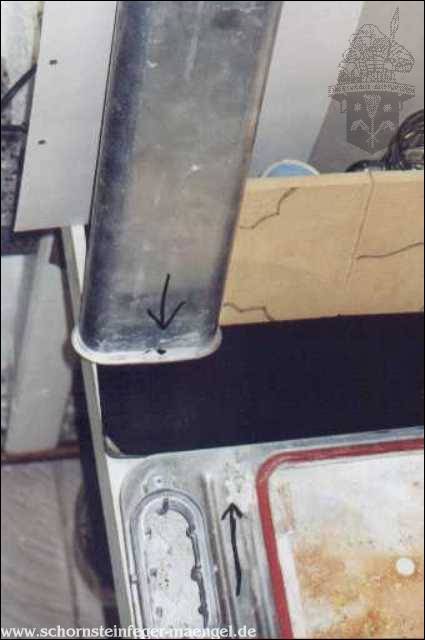

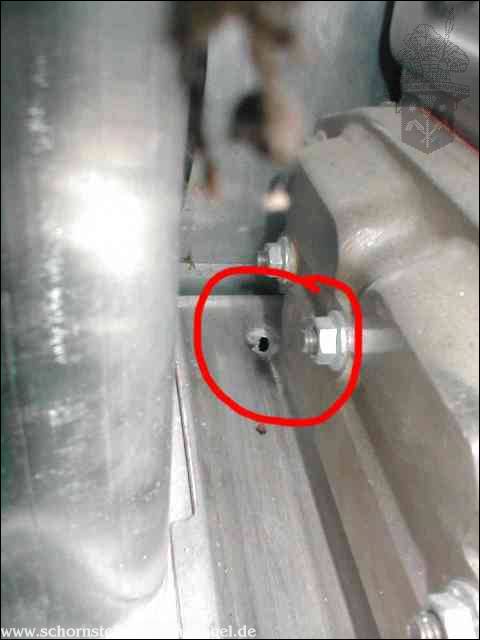

![](../photogallery/Brennwert/b123_small.jpg) ![](../photogallery/Brennwert/b124_small.jpg) Abgas- und Kondensataustritt am

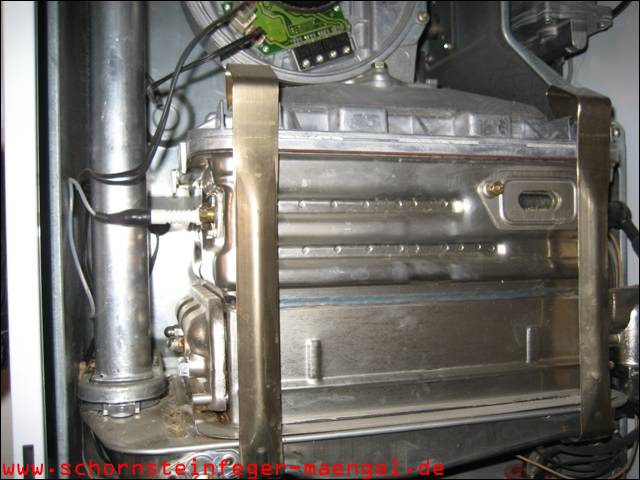

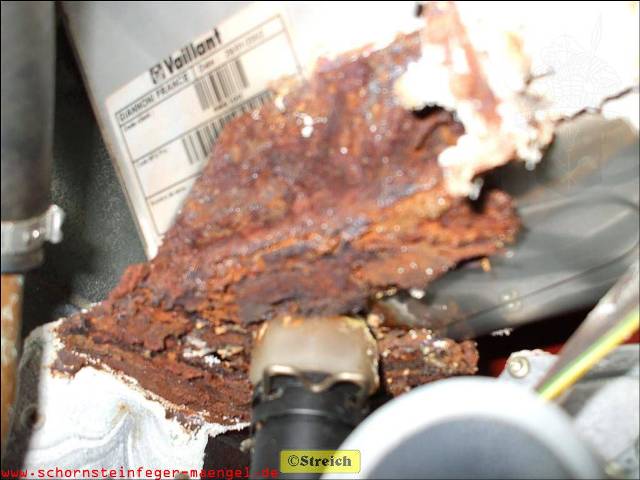

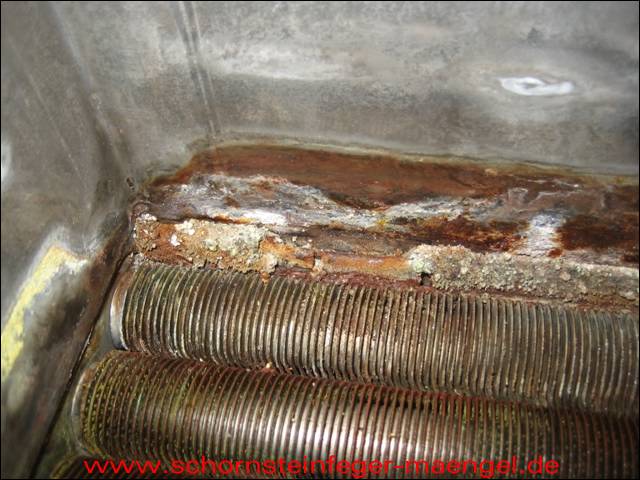

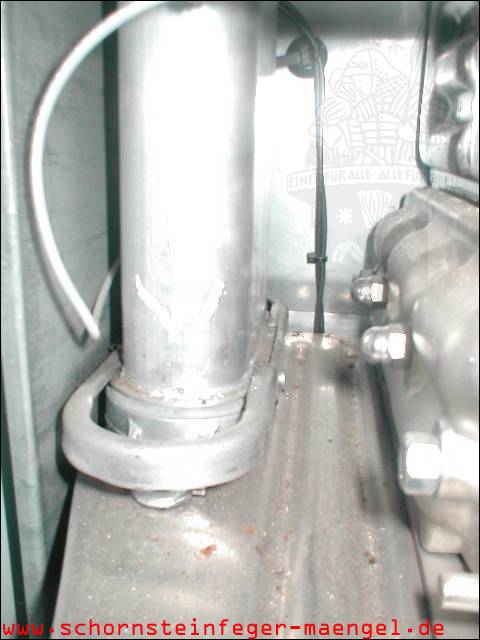

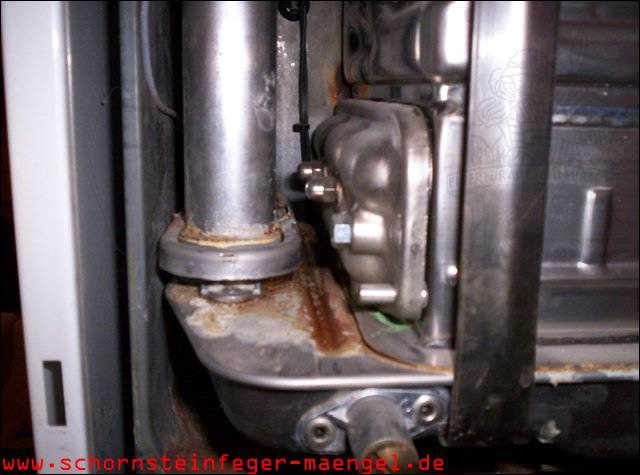

Wärmetauscher da durchgerostet! |

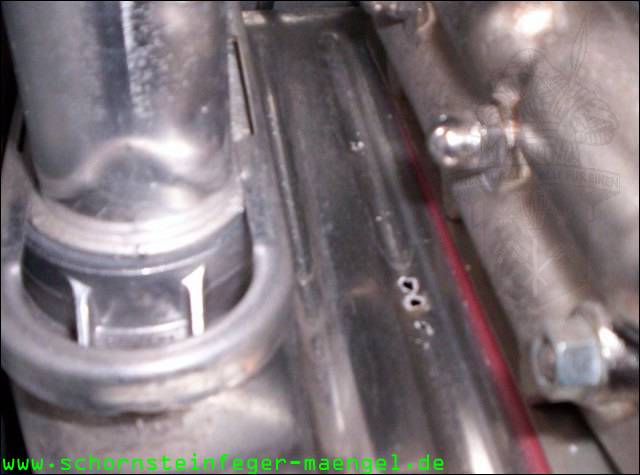

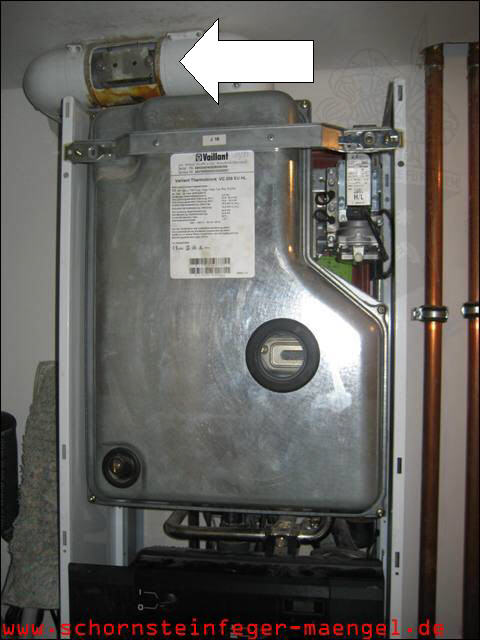

Abgasaustritt am innen liegenden Abgasrohr, da
durchrostet |

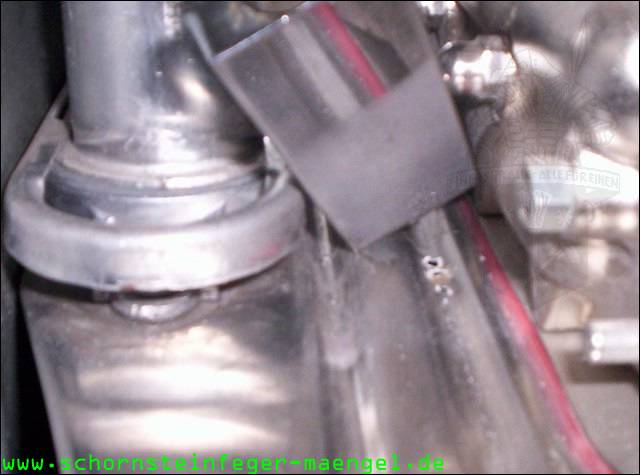

![](../photogallery/Brennwert/b133_small.jpg) ![](../photogallery/Brennwert/b134_small.jpg) Abgasaustritt innerhalb der Feuerstätte, da Abgassammler durchgerostet! -

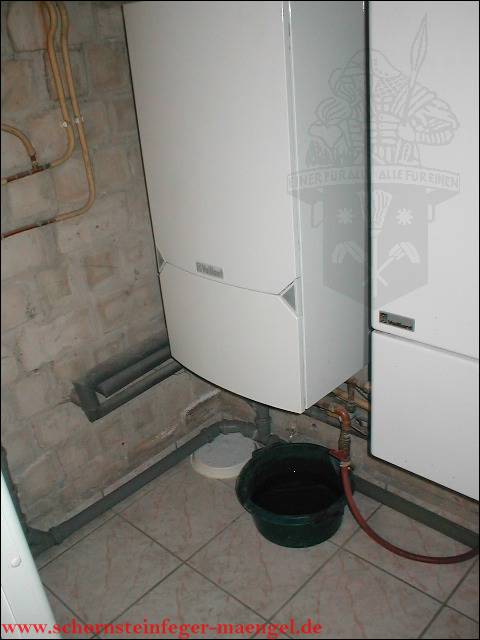

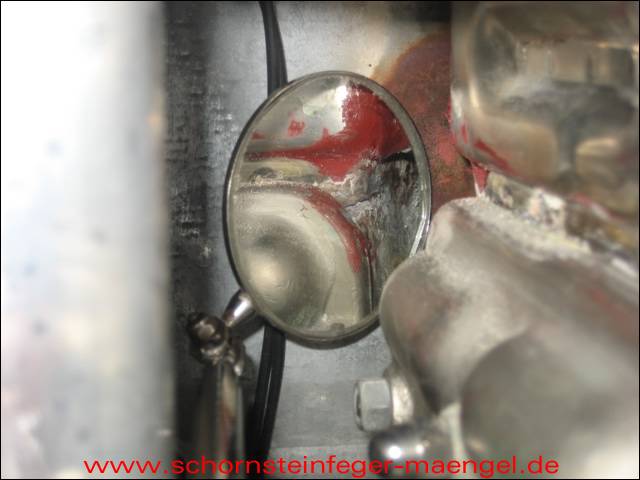

Tauspiegel beschlägt! |

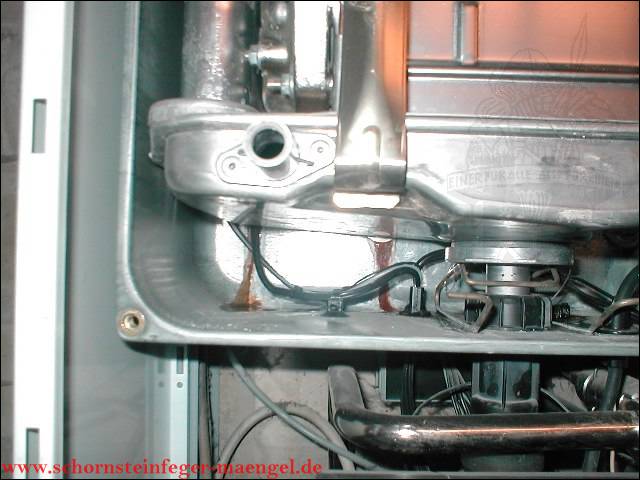

![](../photogallery/Brennwert/b096_small.jpg) ![](../photogallery/Brennwert/b095_small.jpg) Kondensat tropft schon aus der

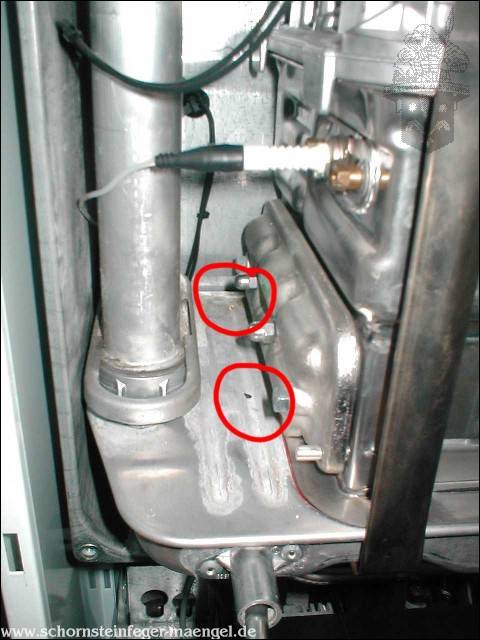

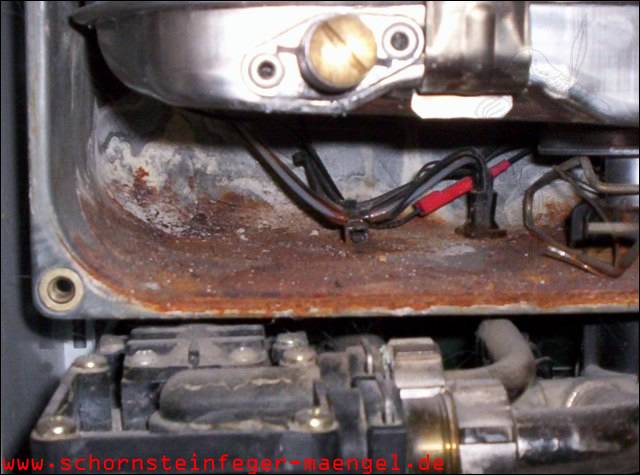

Verkleidung - Kondensatauffangschale durchgerostet! |

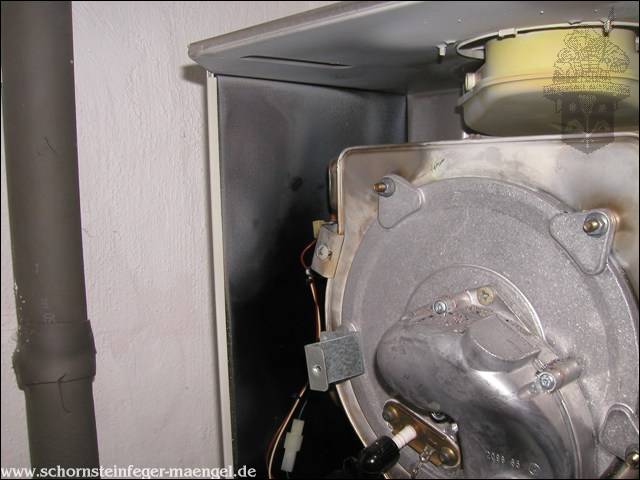

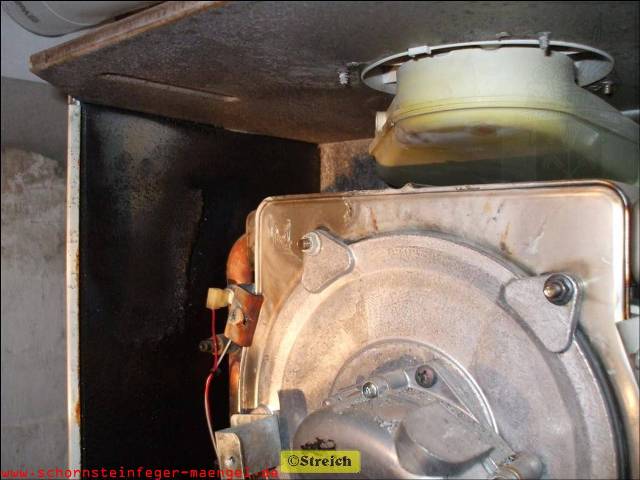

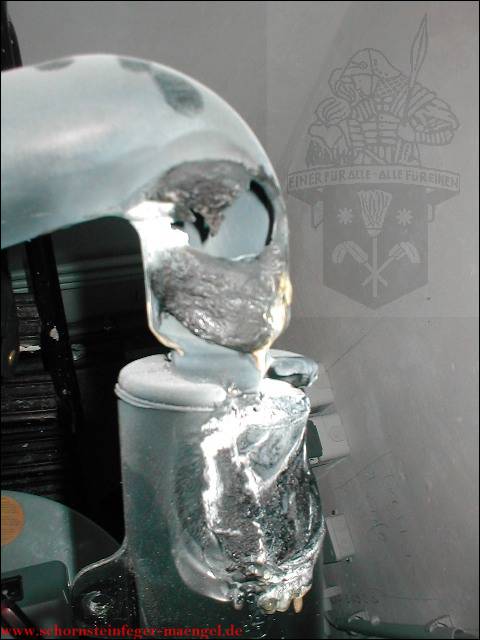

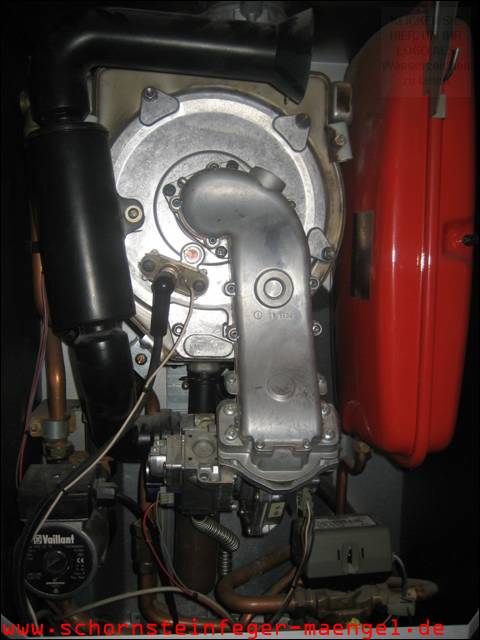

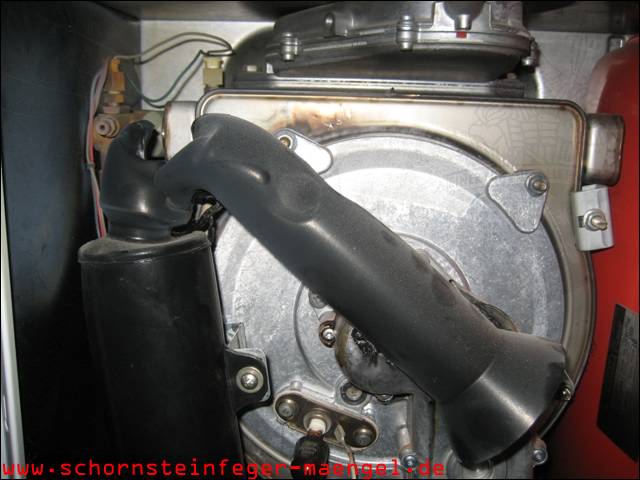

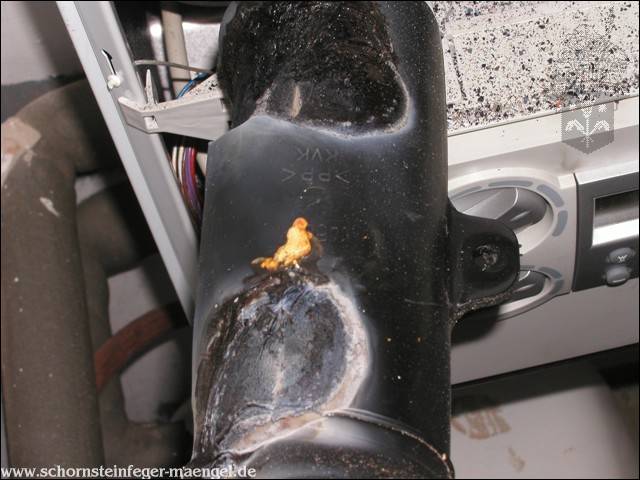

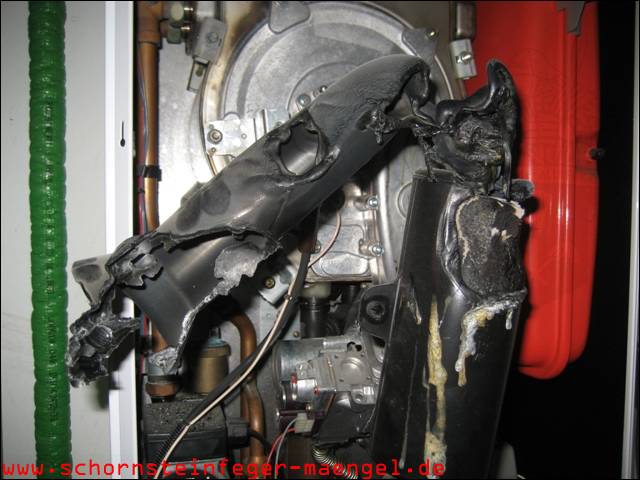

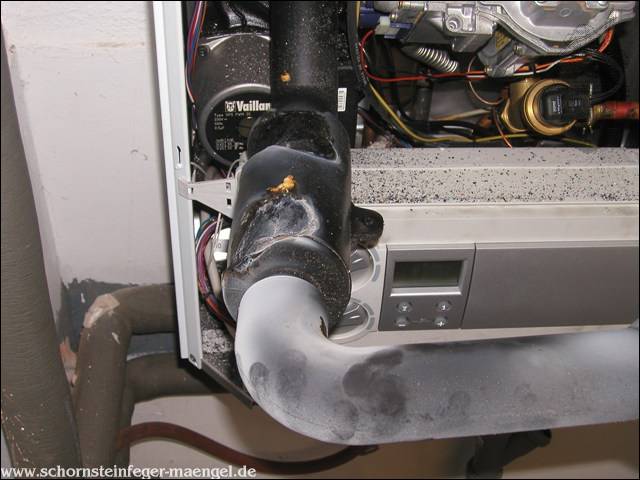

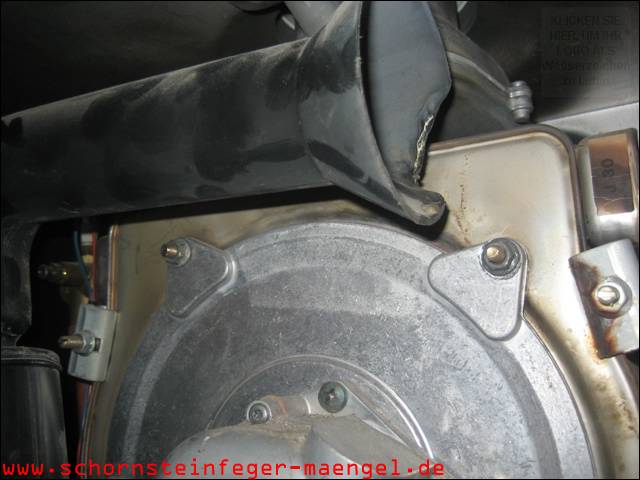

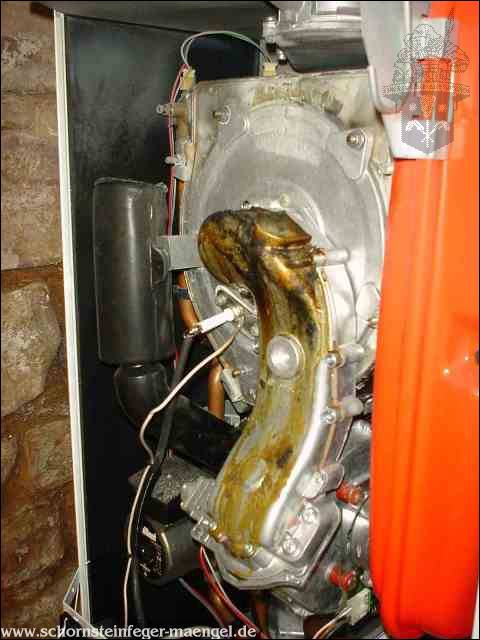

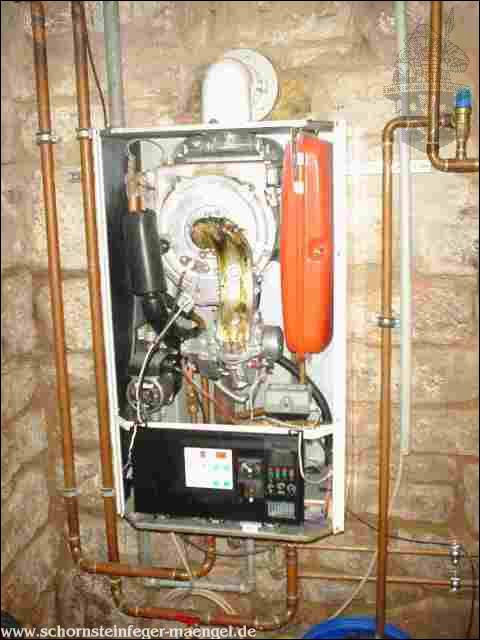

Luftansaugrohr verschmort, da
heißer Abgasaustritt am Brenner! (11 Uhr Brand!) |
![](../photogallery/Brennwert/IMG_1051_small.jpg) ![](../photogallery/Brennwert/IMG_1052_small.jpg) ![](../photogallery/Brennwert/IMG_1053_small.jpg) |
|

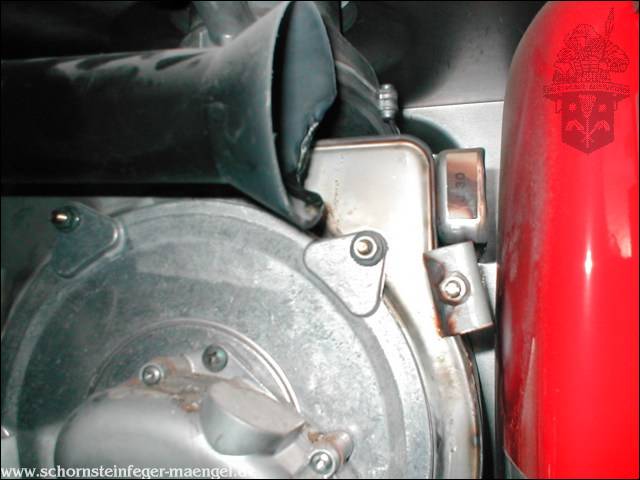

![](../photogallery/Brennwert/b045_small.jpg) |
![](../photogallery/Brennwert/b088_small.jpg) |

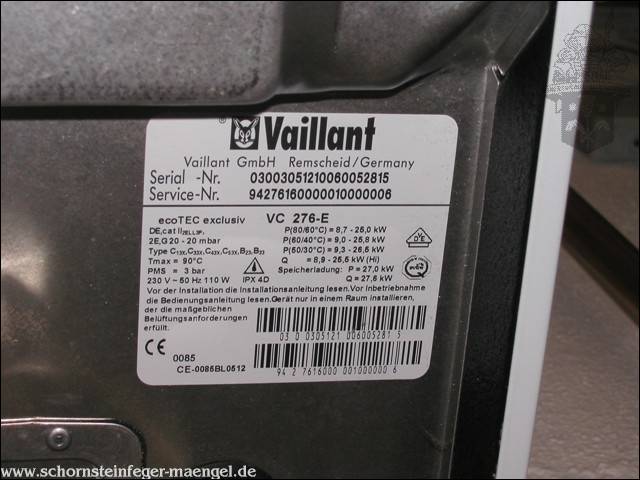

![](../photogallery/Brennwert/b067_small.jpg) ![](../photogallery/Brennwert/b068_small.JPG) ![](../photogallery/Brennwert/b069_small.JPG) ![](../photogallery/Brennwert/b070_small.JPG) |
|
![](../photogallery/Brennwert/b089_small.jpg) |

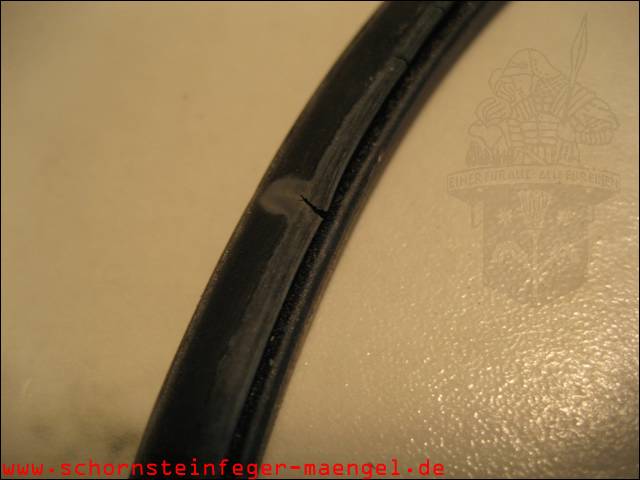

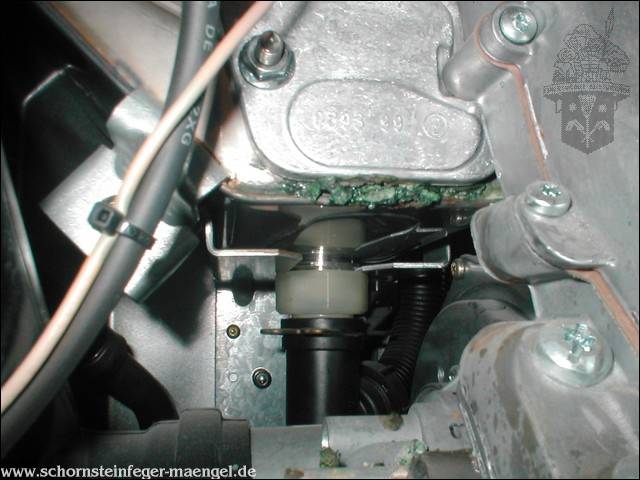

![](../photogallery/Brennwert/b062_small.jpg) verschlissene Dichtung --> Abgas- und Kondensataustritt |

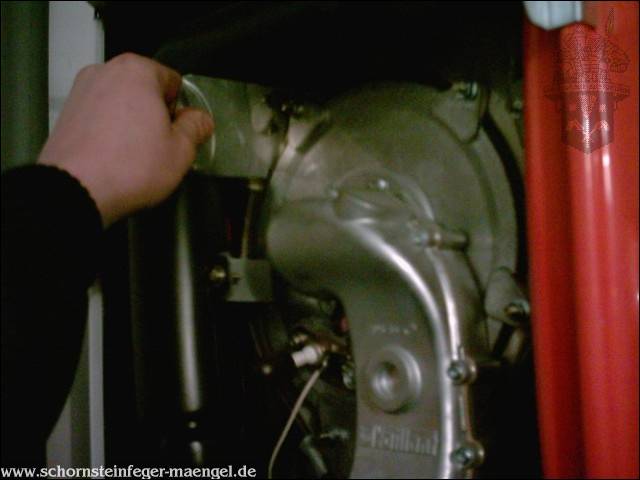

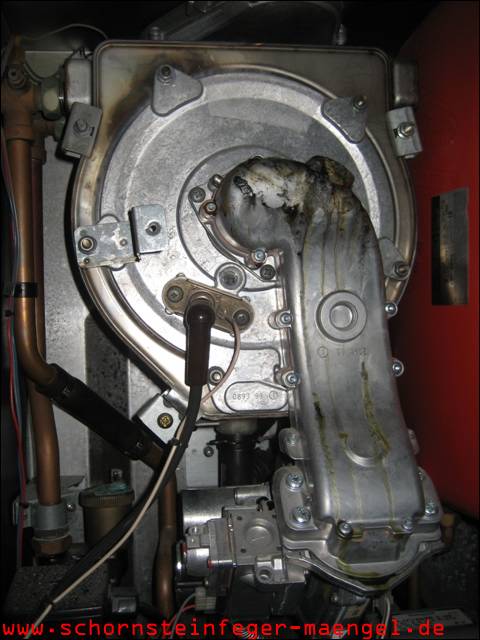

![](../photogallery/Brennwert/b051_small.jpg) Abgasaustritt am Brenner |
![](../photogallery/Erdgas/EG074.jpg) Erdgasaustritt am Geräteanschluss -
Überwurf undicht |

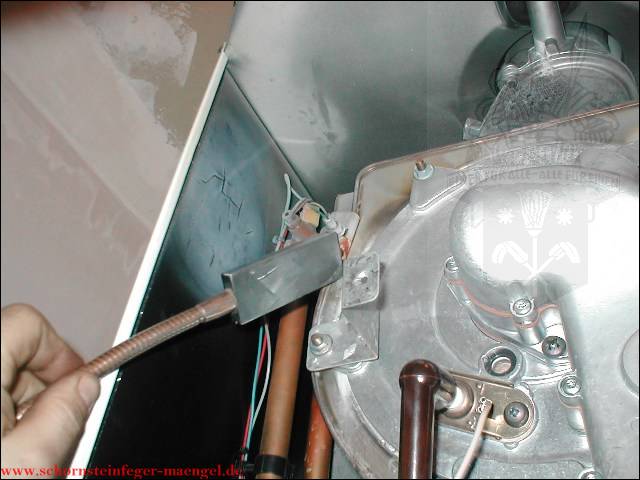

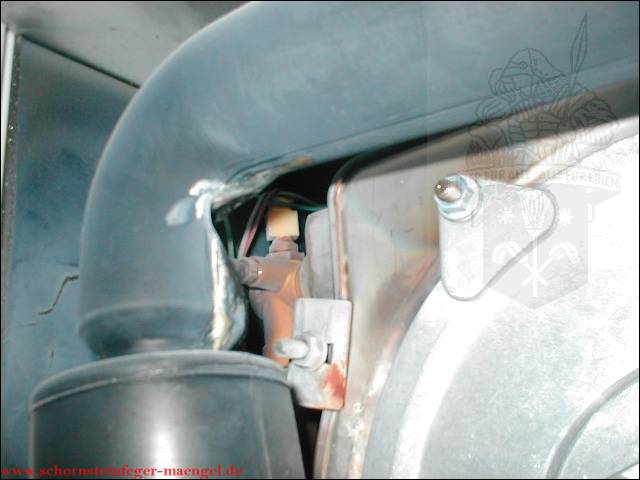

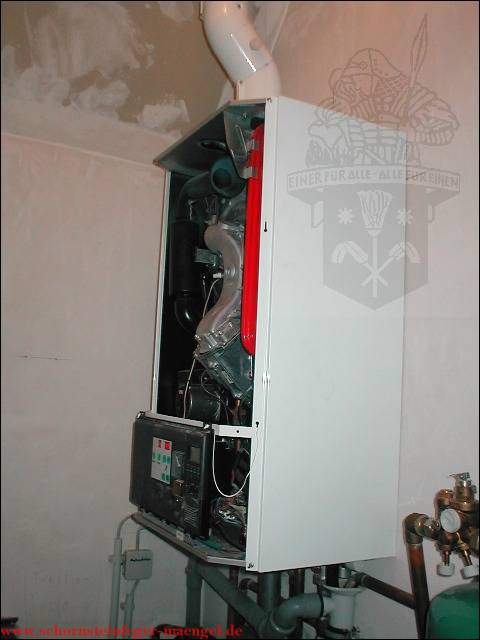

![](../photogallery/Brennwert/b081_small.jpg) Wiederkehrende Überprüfung einer 5

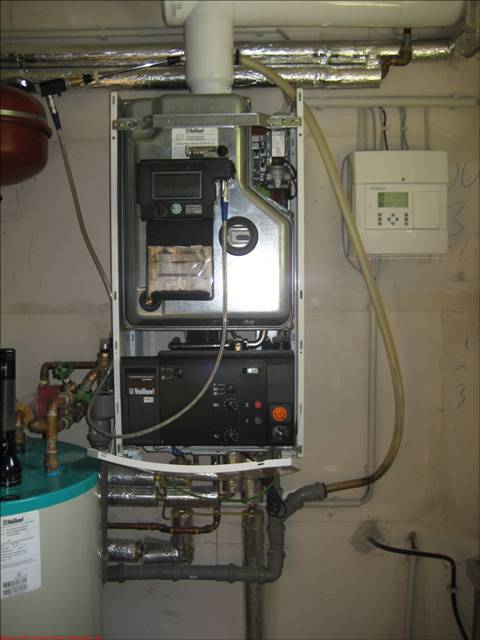

Jahre jungen jährliche gewarteten Brennwertanlage VC196 - heißer feuchter
Abgasaustritt am Brenner - Luftansaugrohr zerschmolzen - Brandgefahr! |
Gas-, Kondensat- und Abgasaustritt! |
Abgasaustritt an der Abgasleitung,
da Dichtung verschlissen - getrenntes Luft-Abgas-System |

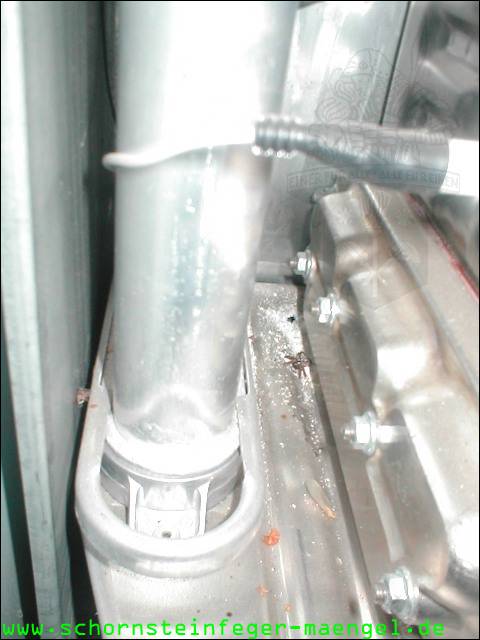

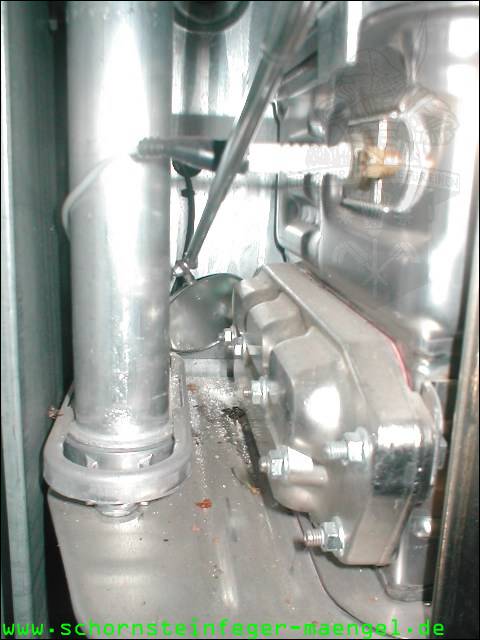

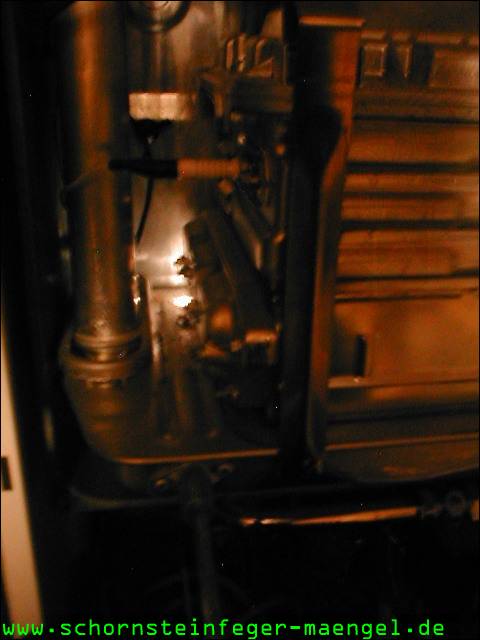

![](../photogallery/Brennwert/b128_small.jpg) Abgasaustritt innerhalb der
Feuerstätte, da Abgas- bzw. Kondensatsammler durchgerostet
|

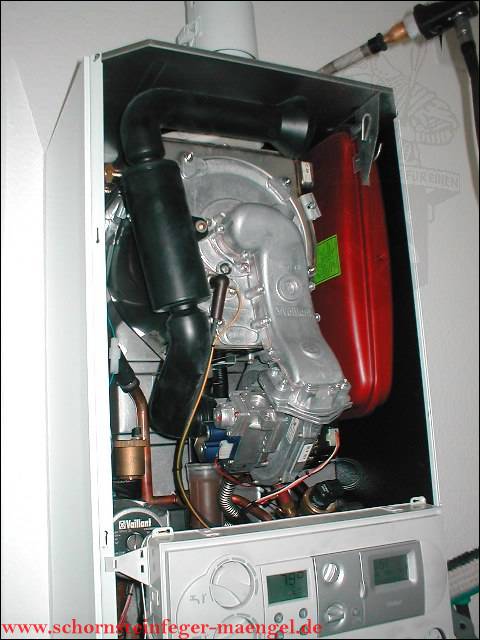

![](../photogallery/Brennwert/b104_small.jpg) ![](../photogallery/Brennwert/b103_small.jpg) Abgasstutzen hinter dem
Wärmetauscher undicht - Kondensataustritt innerhalb der Feuerstätte |
![](../photogallery/Brennwert/a190_small.jpg) ![](../photogallery/Brennwert/a191_small.jpg)

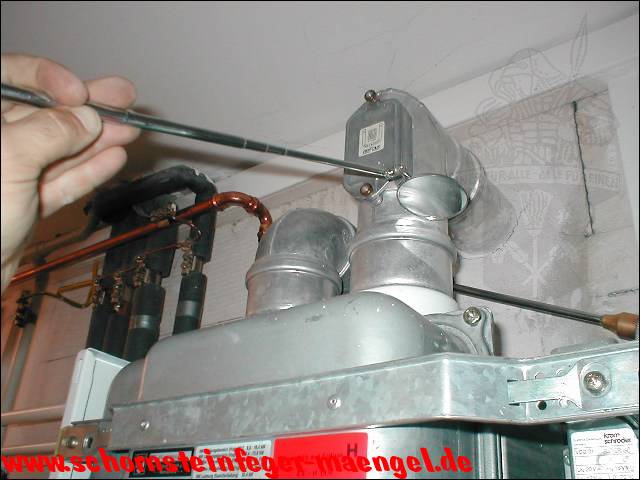

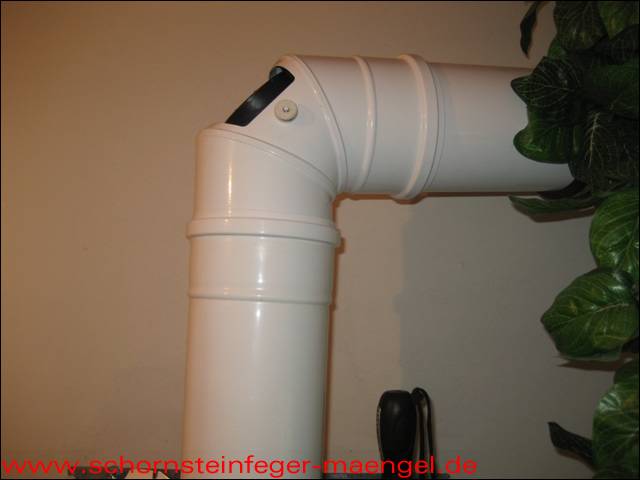

falsch installiertes Abgasleitungssystem von -- vor und nach der
Beseitigung des Mangels!
|

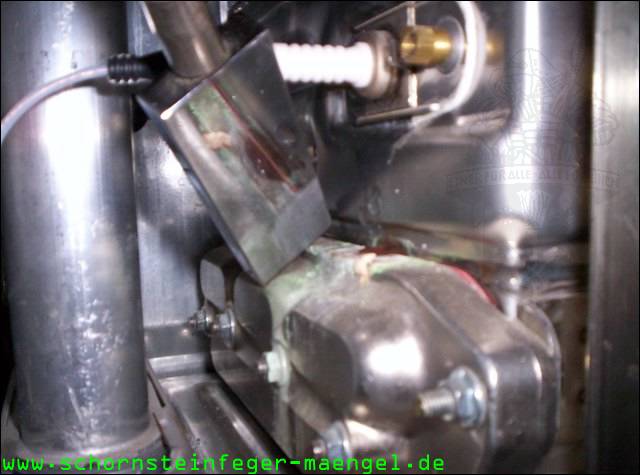

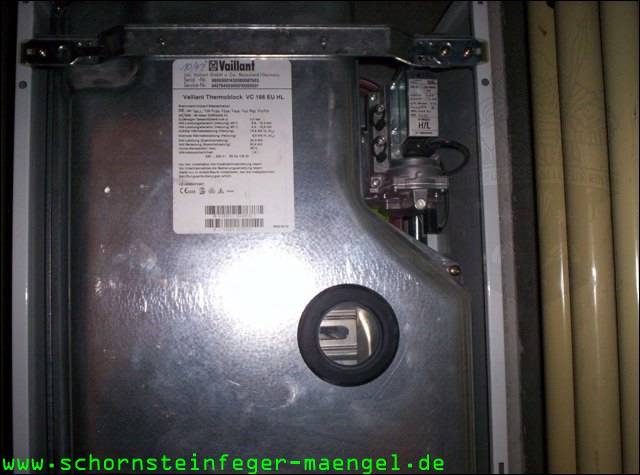

![](../photogallery/Brennwert/b135_small.jpg) ![](../photogallery/Brennwert/b136_small.jpg) Abgasaustritt innerhalb der
Feuerstätte, da Dichtung am Wärmetauscher defekt! |
![](../photogallery/Brennwert/b198_small.jpg)

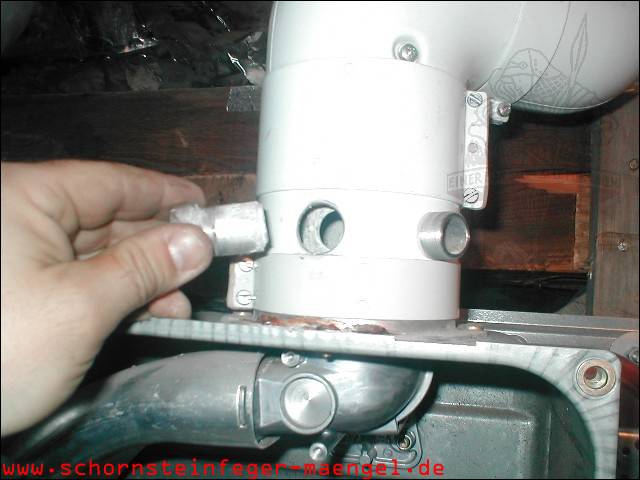

Messstutzen vom Innern der Abgasleitung abgerostet! |

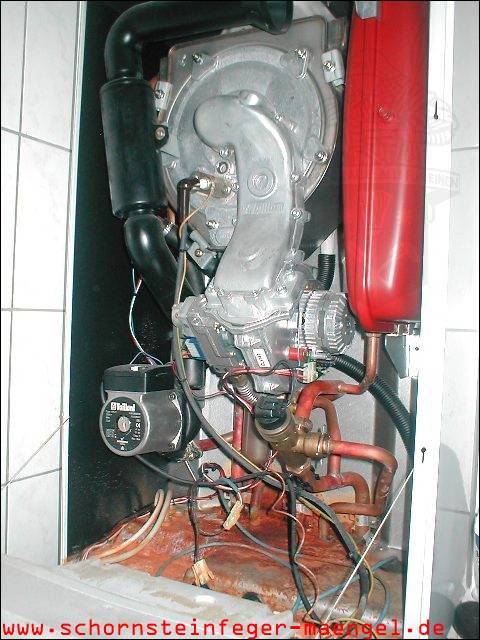

![](../photogallery/Brennwert/b213_small.jpg)

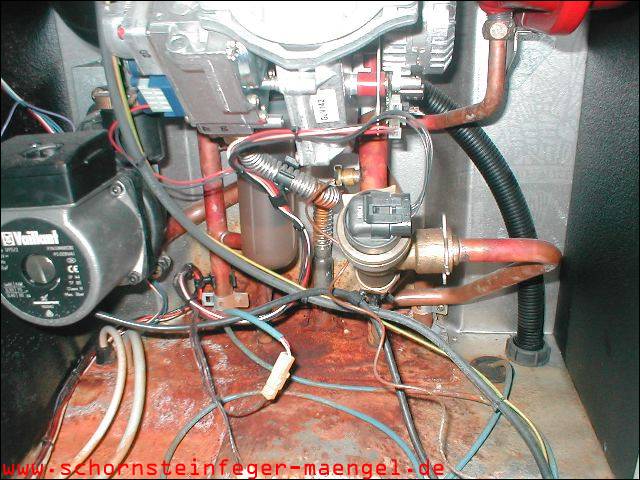

bekanntes Problem - Abgasstutzen innerhalb der Feuerstätte undicht - Abgas-
und Kondensataustritt |

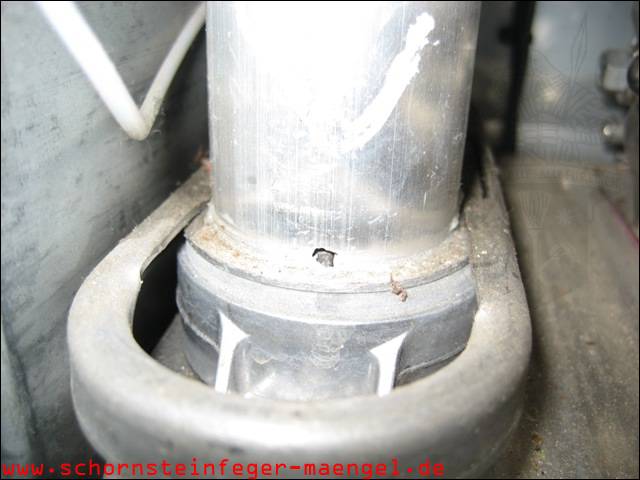

Abgasaustritt, da innen liegendes Abgasrohr durchgerostet |

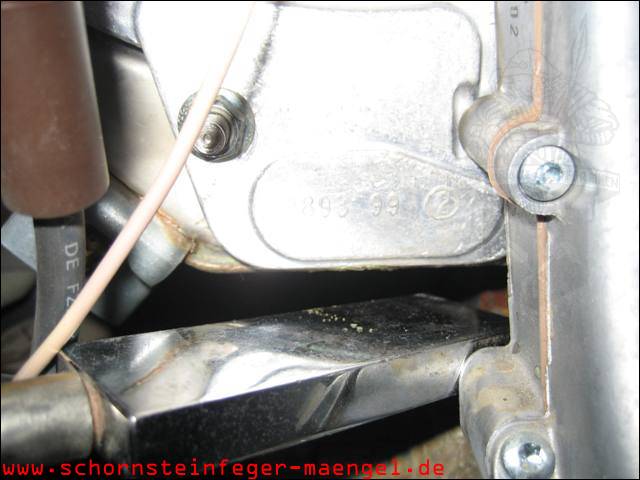

![](../photogallery/Brennwert/b230_small.jpg) ![](../photogallery/Brennwert/b231_small.jpg) ![](../photogallery/Brennwert/b232_small.jpg)

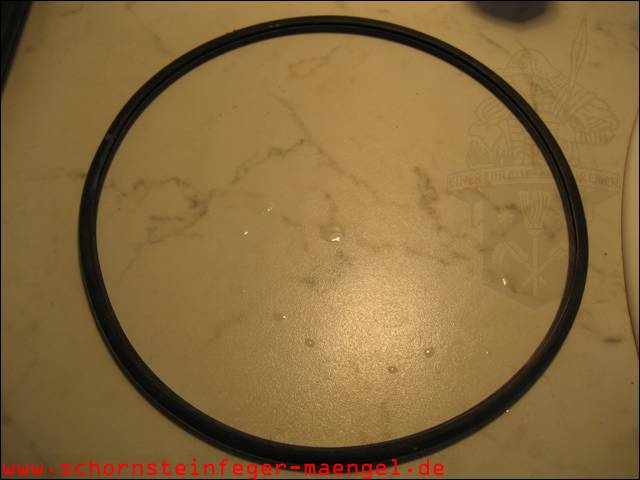

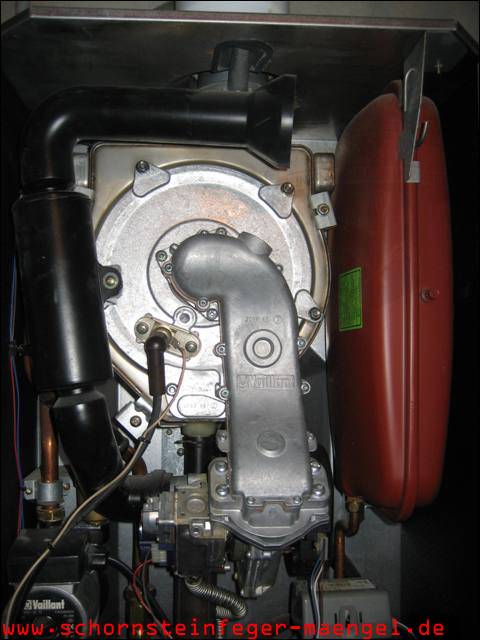

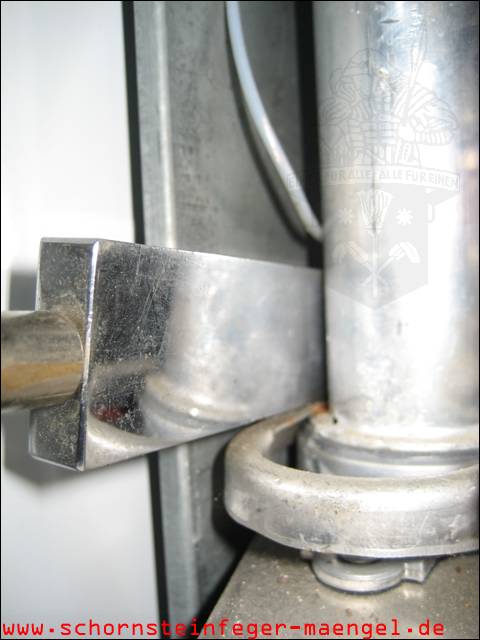

Abgas- und Kondensataustritt am Wärmetauscher, da typische kleine Dichtung
verschlissen! |
![](../photogallery/Brennwert/b233_small.jpg)

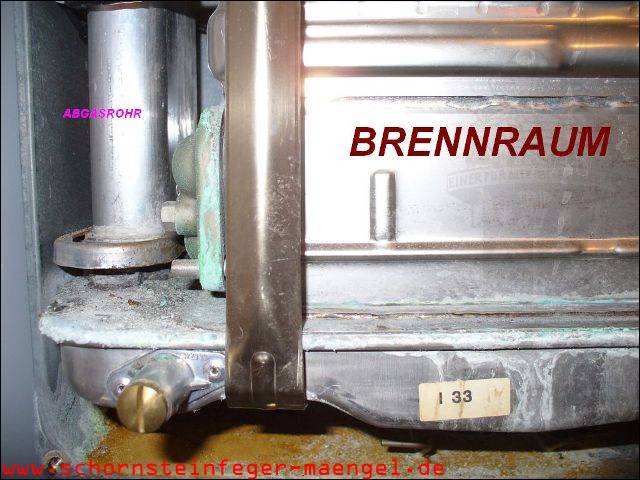

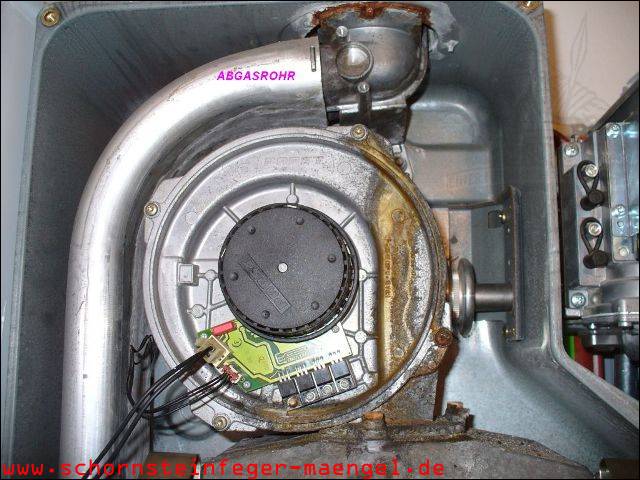

Abgasleitung undicht - Kondensat läuft ins Innere der Feuerstätte und
verursacht weitere Schäden, wie z.B. hier am Gebläse mit der freiliegenden
Elektronik |
![](../photogallery/Brennwert/b223_small.jpg) ![](../photogallery/Brennwert/b229_small.jpg)

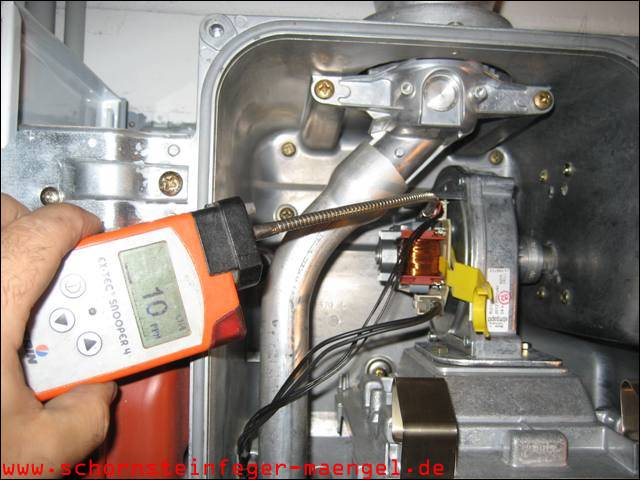

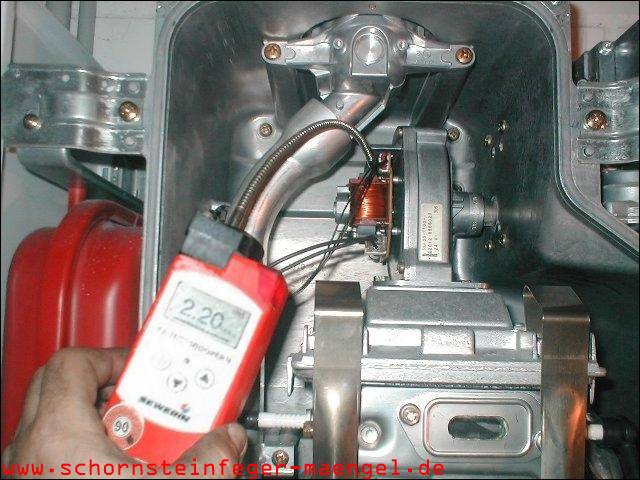

Erdgasaustritt bei Betrieb innerhalb der Feuerstätte am Gebläse.
Hersteller hat nach einigen techn. Veränderungen des Gebläses und nach Rücksprache mit
dem Gebläselieferanten den Mangel behoben! Wartungsmonteur war damit
überfordert! |
![](../photogallery/Brennwert/b250_small.jpg) ![](../photogallery/Brennwert/b251_small.jpg)

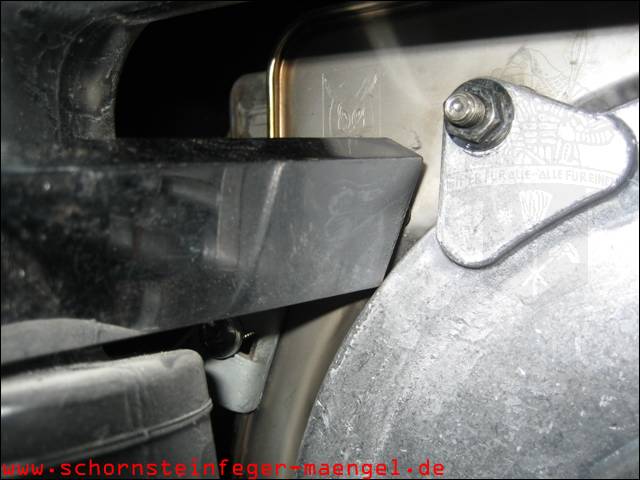

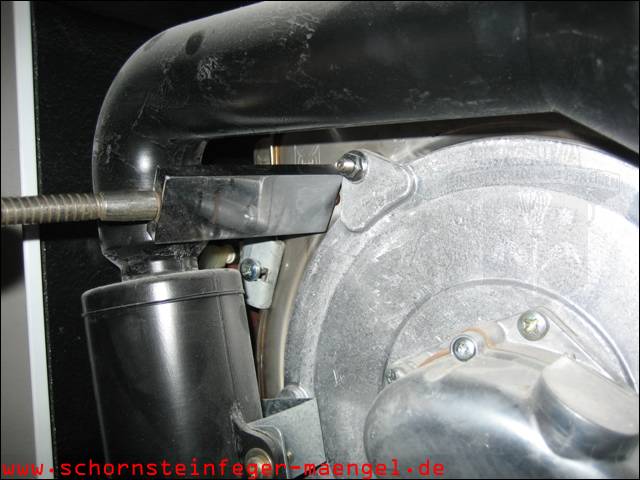

Abgasaustritt am Wärmetauscher, da Brennerflanschdichtung verschlissen!
![](../photogallery/Brennwert/b257_small.jpg) |

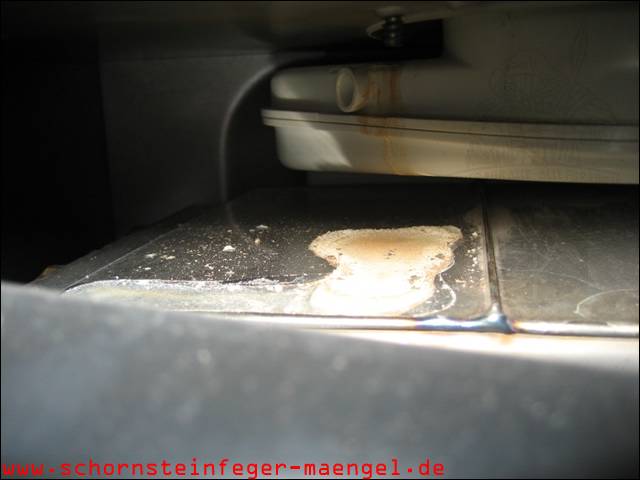

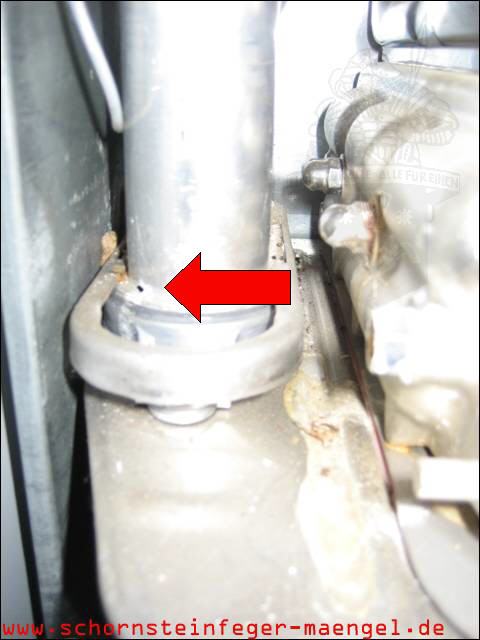

Abgas- und Kondensataustritt innerhalb der Feuerstätte, da innen
liegendes Abgasrohr durchgerostet! |

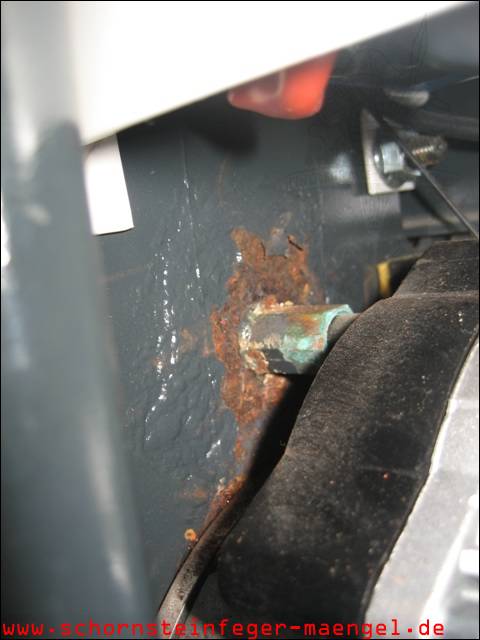

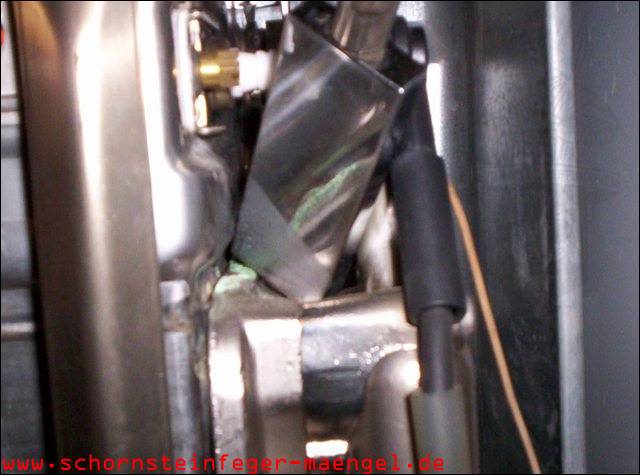

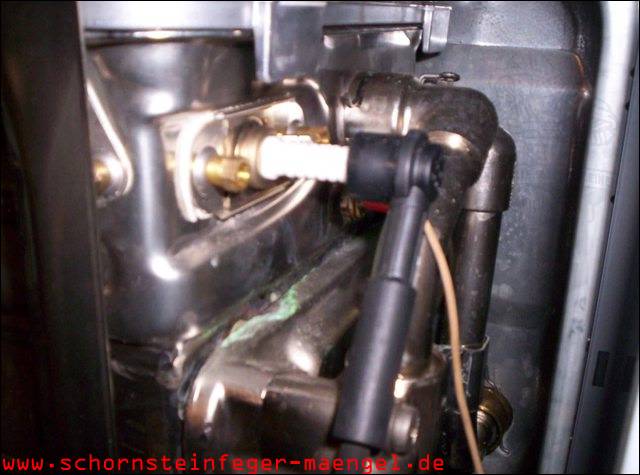

![](../photogallery/Brennwert/b311_small.jpg)

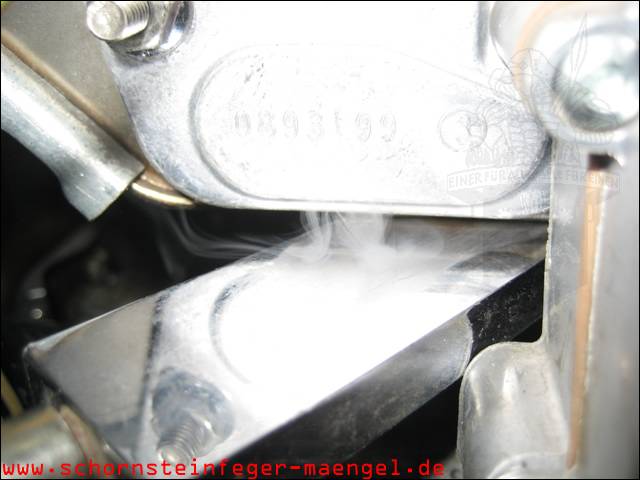

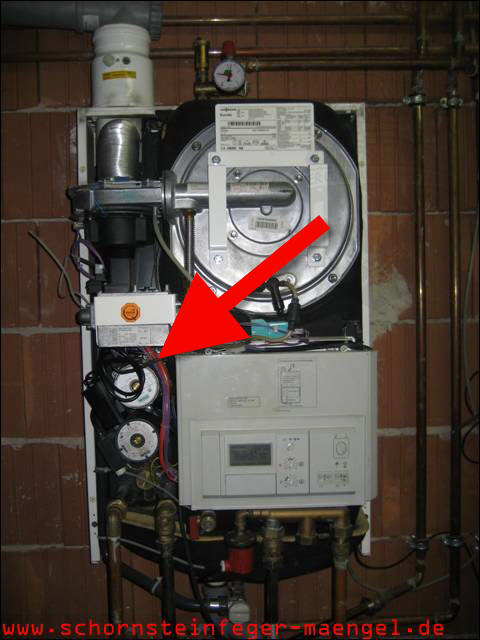

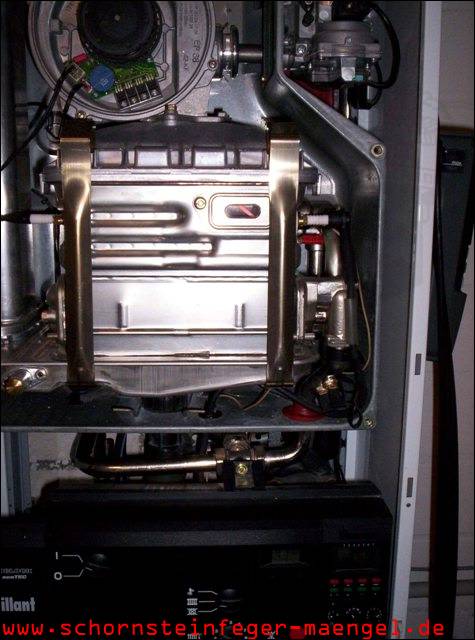

Abgasaustritt am Wärmetauscher - Tauspiegel beschlägt! |
1. Abgasleitung undicht - Kondensat läuft über den Ringspalt zurück in
die Feuerstätte
2. kleine Dichtung am Wärmetauscher verschlissen - Abgas- und
Kondensataustritt! |

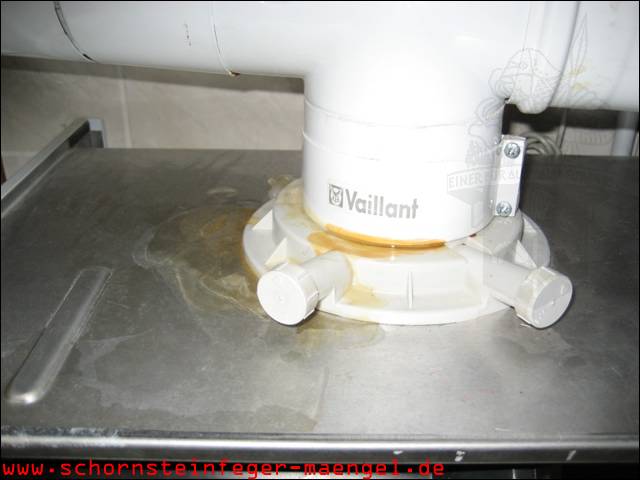

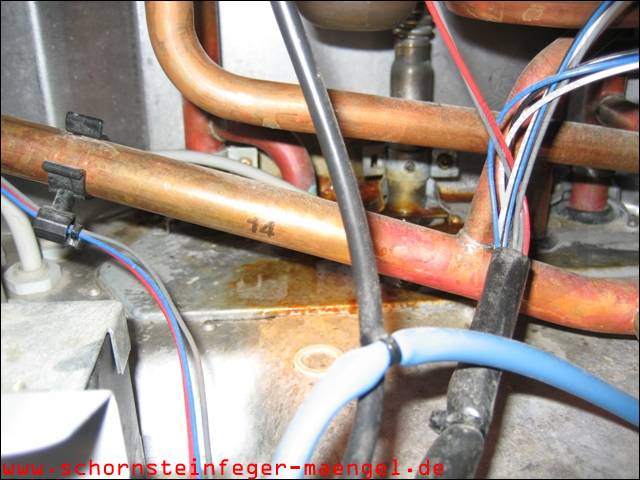

Kondensatableitung der Abgasleitung nicht in einen Trabs geführt, dadurch
massiver Abgasaustritt an den unteren Abflussöffnungen! |

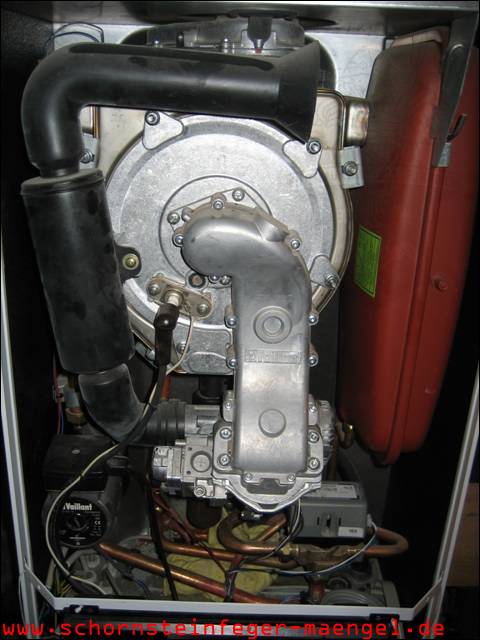

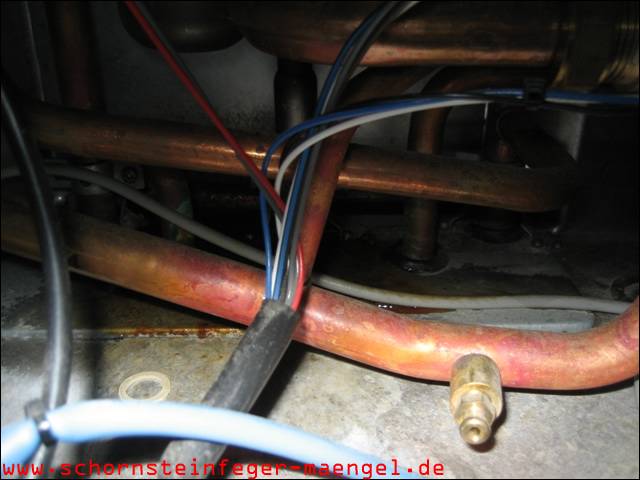

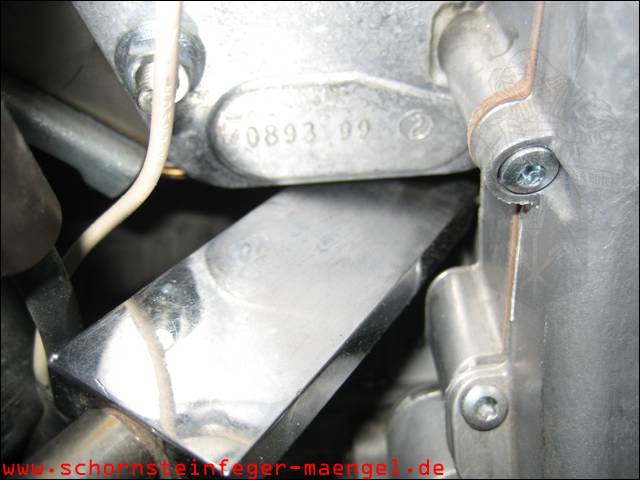

![](../photogallery/Brennwert/b262_small.jpg) ![](../photogallery/Brennwert/b259_small.jpg)
![](../photogallery/Brennwert/b261_small.jpg) ![](../photogallery/Brennwert/b271_small.jpg)

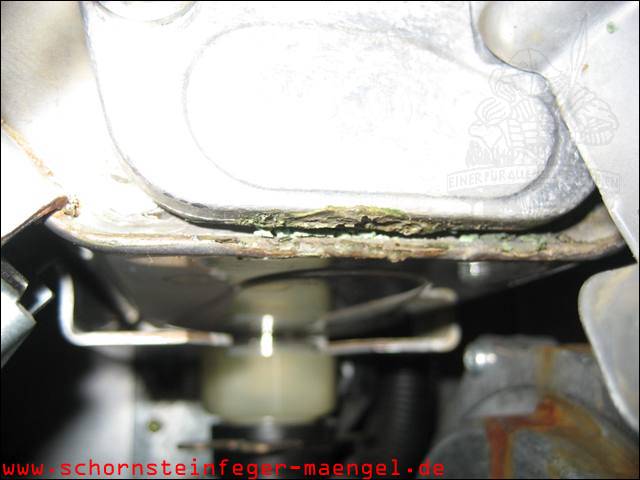

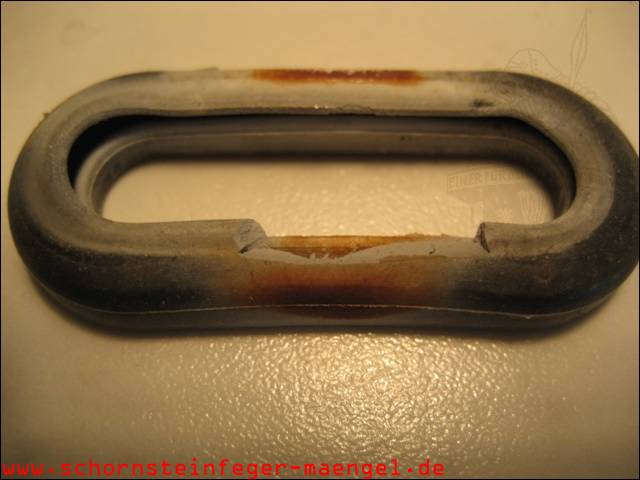

Kondensataustritt innerhalb der Feuerstätte am Wärmetauscher, da kleine
Dichtung verschlissen! |

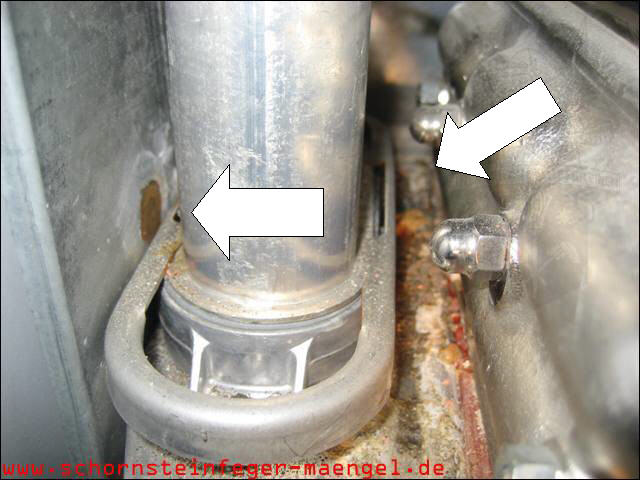

![](../photogallery/Brennwert/b289_small.jpg) ![](../photogallery/Brennwert/b288_small.jpg) ![](../photogallery/Brennwert/b286_small.jpg)

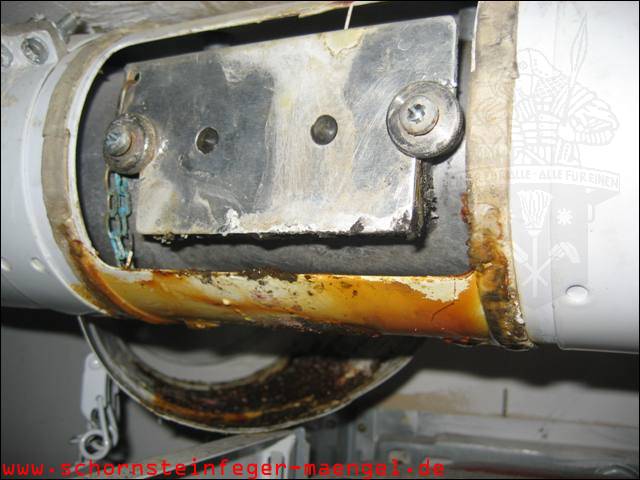

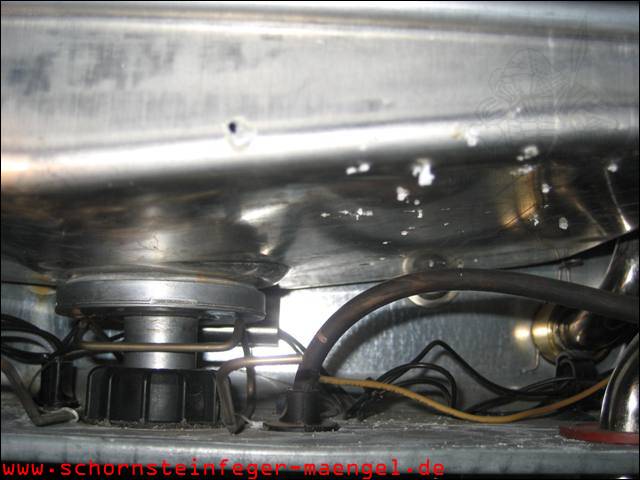

innen liegendes Abgasrohr und Kondensatauffangschale durchgerostet -->
Abgas- und Kondensataustritt! Revisionsöffnung undicht - Kondensat läuft
über den Ringspalt in die Feuerstätte zurück! |

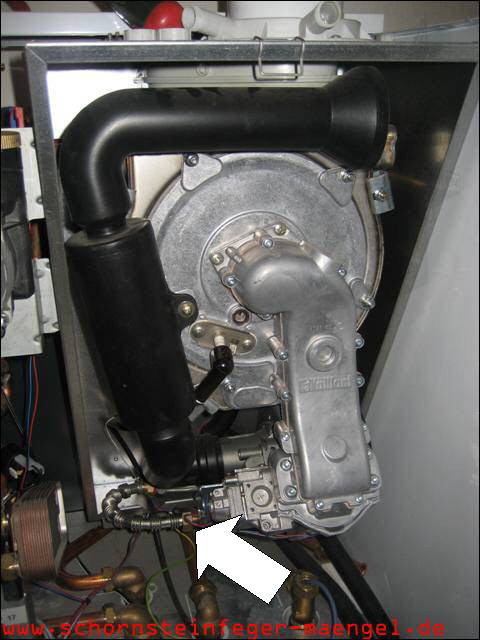

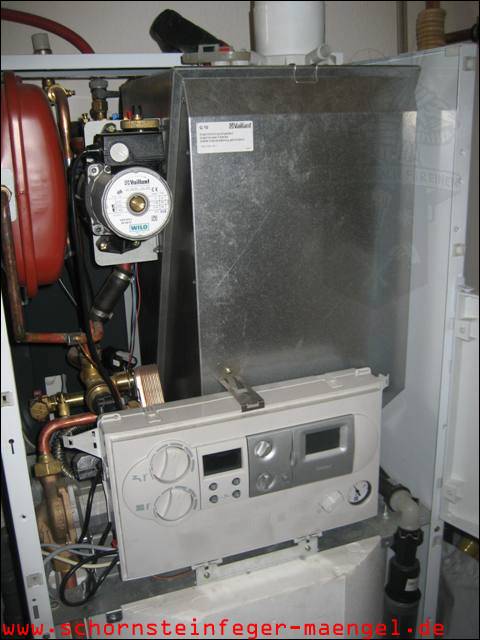

![](../photogallery/Brennwert/b290_small.jpg) ![](../photogallery/Brennwert/b291_small.jpg) Explosionsgefahr!

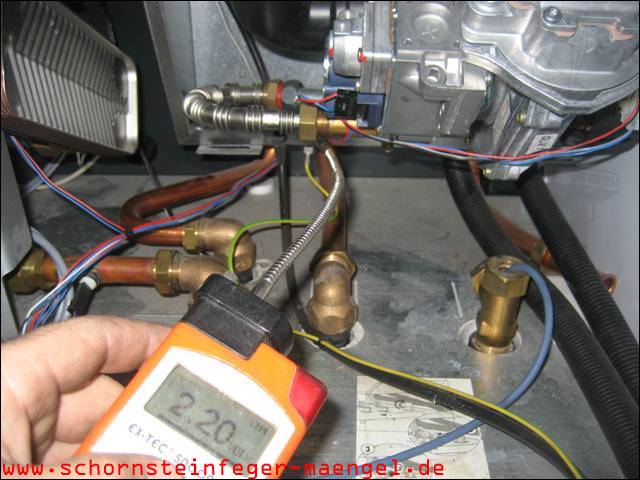

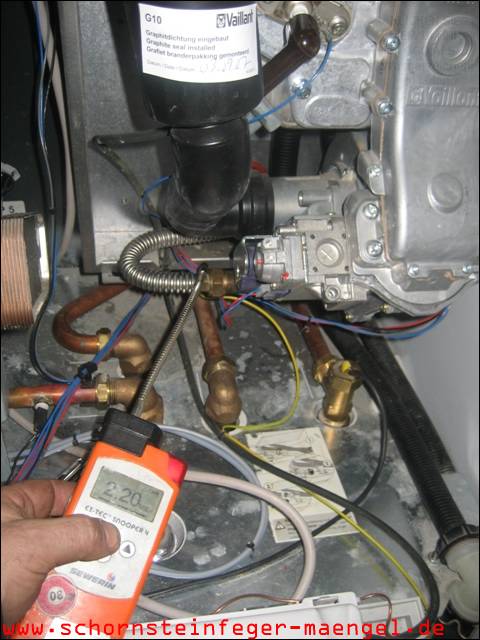

Erdgasaustritt von > 2,2 Vol % am Brenneranschluss innerhalb der
Feuerstätte nach erfolgter Wartung durch den Werkskundendienst! |
![](../photogallery/Brennwert/IMG_1075_small.jpg) ![](../photogallery/Brennwert/IMG_1074_small.jpg)

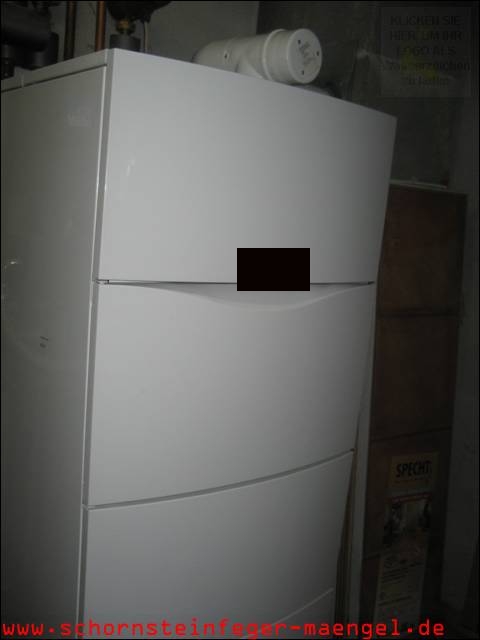

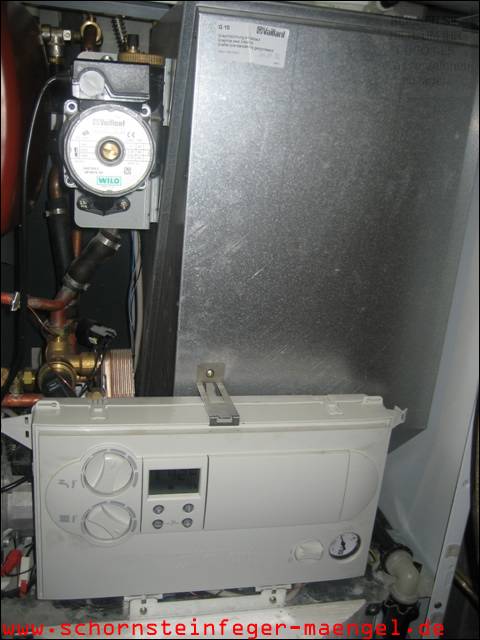

Erdgasaustritt innerhalb der dichten Verkleidung, da Anschluss am Brenner
lose! |
![](../photogallery/Brennwert/IMG_1115_small.jpg)

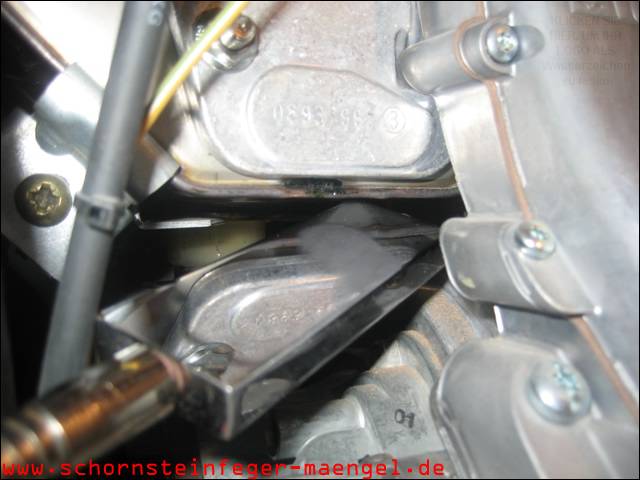

Abgasaustritt am Wärmetauscher! |

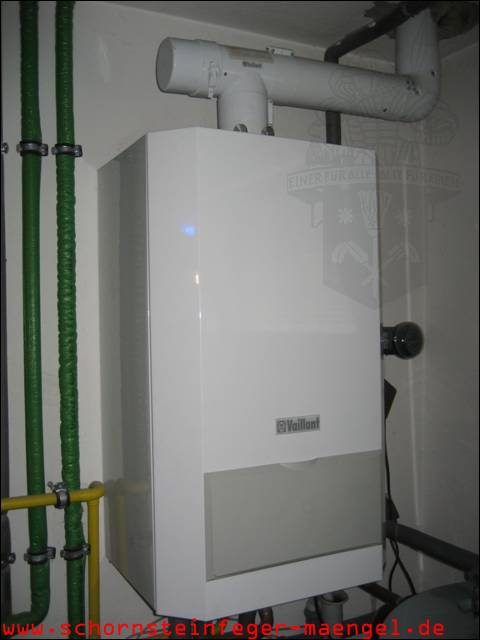

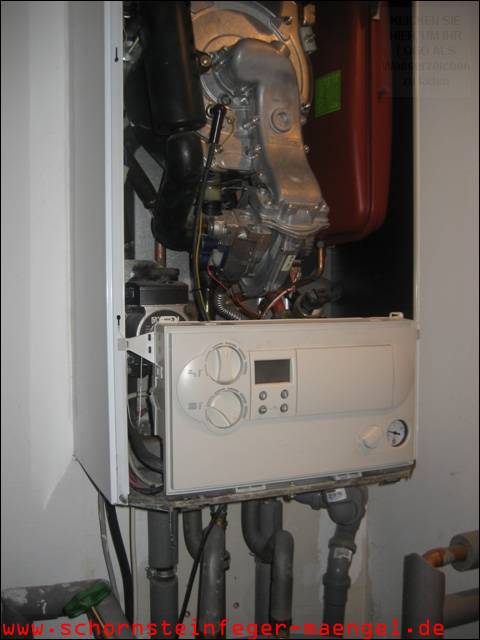

![](../photogallery/Brennwert/IMG_6505_small.jpg) ![](../photogallery/Brennwert/IMG_6500_small.jpg) ![](../photogallery/Brennwert/IMG_6499_small.jpg) ![](../photogallery/Brennwert/IMG_6497_small.jpg) ![](../photogallery/Brennwert/IMG_6496_small.jpg)

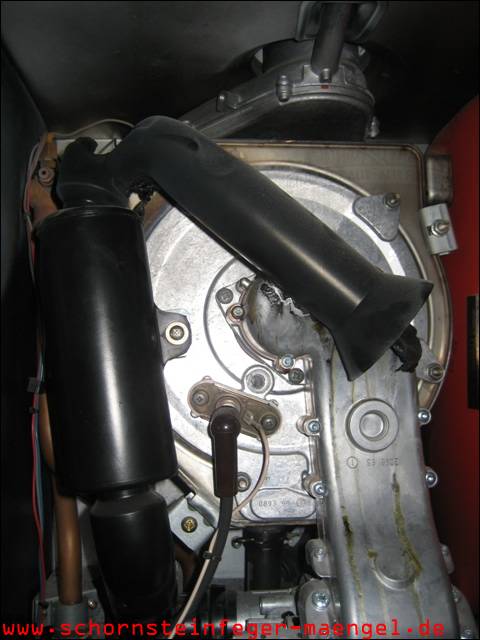

erheblicher heißer Abgasaustritt innerhalb der Feuerstätte, da wie immer die
Brennerflanschdichtung verschlissen! Anlage gesperrt!
siehe unter
Video |

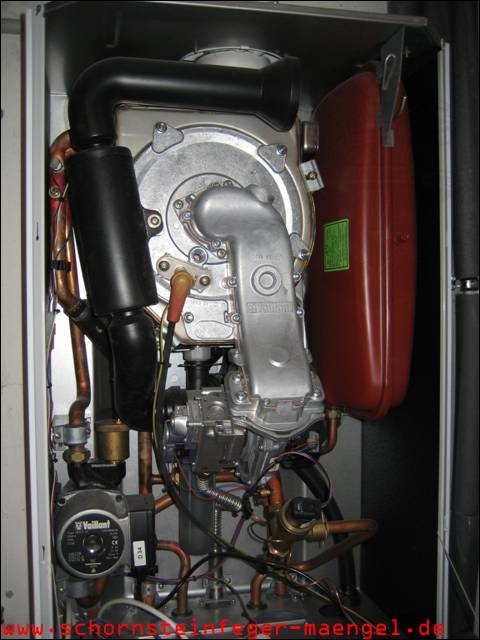

![](../photogallery/Brennwert/IMG_9556_small.jpg) ![](../photogallery/Brennwert/IMG_9560_small.jpg)

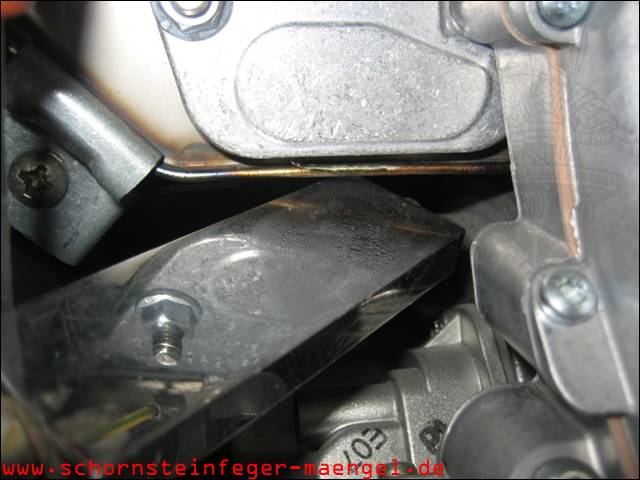

Abgasaustritt, da untere Dichtung am Wärmetauscher verschlissen! |
![](../photogallery/Brennwert/2007-10-28_small.jpg)

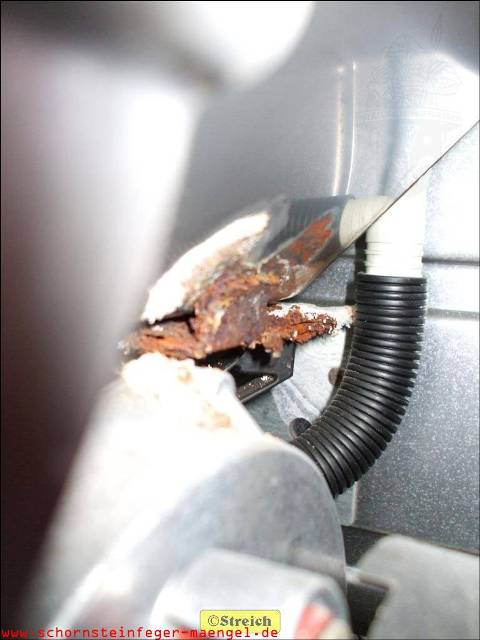

Kondensataustritt an der Kondensatauffangschale! |

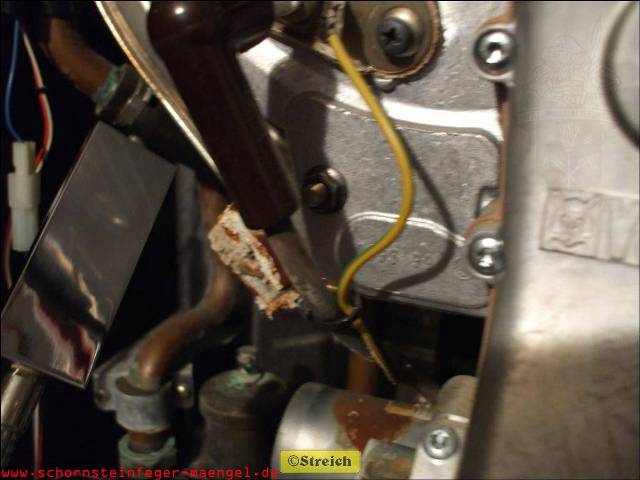

![](../photogallery/Brennwert/2007-10-30_small.jpg) ![](../photogallery/Brennwert/2007-10-31_small.jpg)

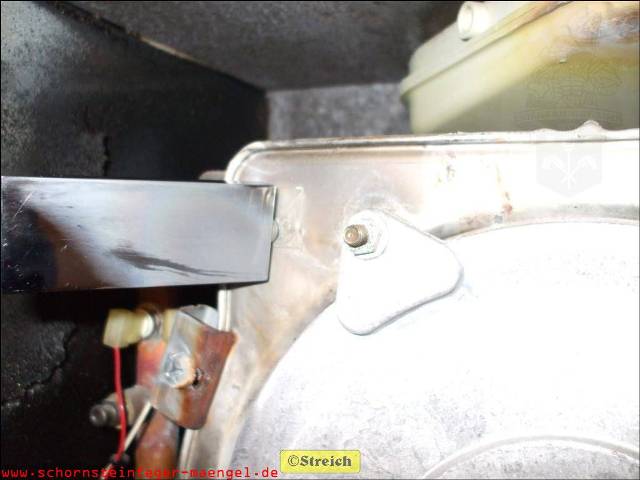

Abgas und Kondensataustritt innerhalb der Feuerstätte, da
Brennerflanschdichtung verschlissen |
|

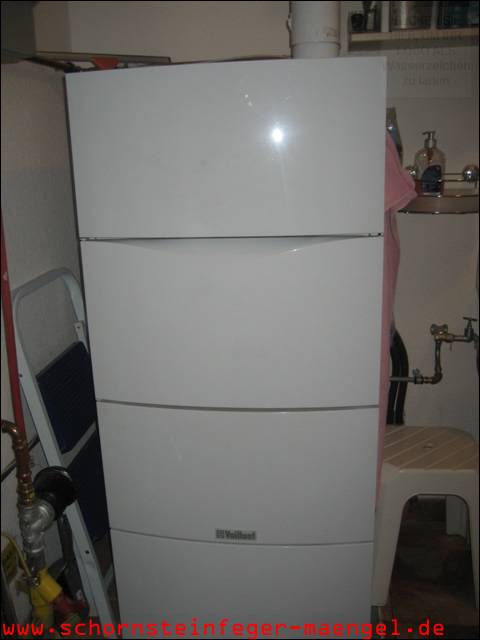

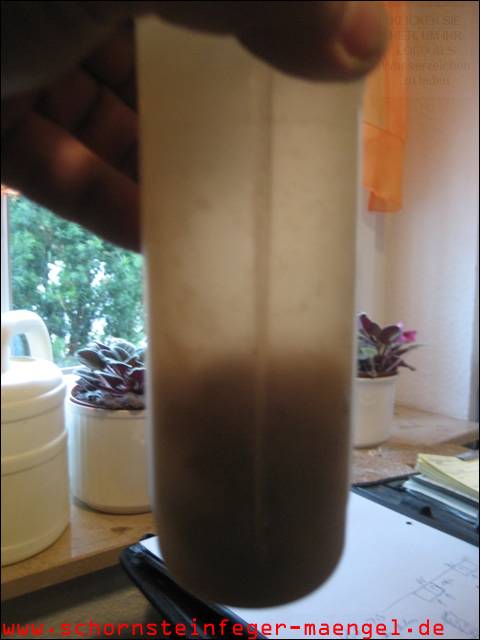

![](../photogallery/Brennwert/IMG_1135_small.jpg) ![](../photogallery/Brennwert/IMG_1130_small.jpg) ![](../photogallery/Brennwert/IMG_1131_small.jpg) ![](../photogallery/Brennwert/IMG_1133_small.jpg) ![](../photogallery/Brennwert/IMG_1134_small.jpg)

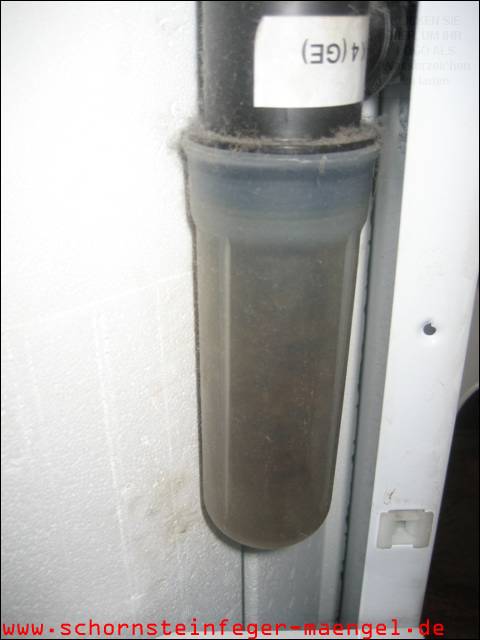

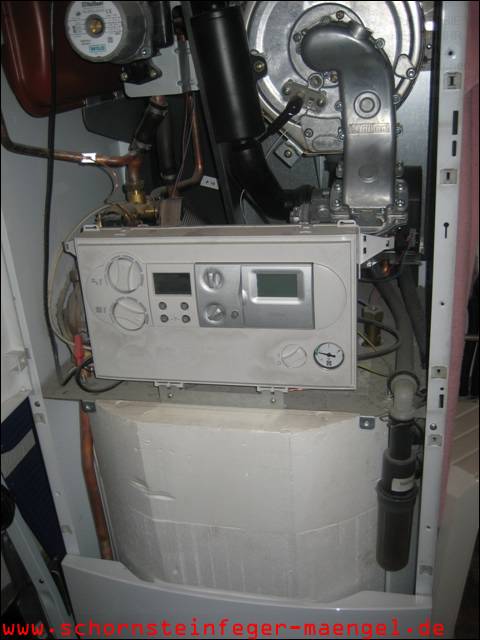

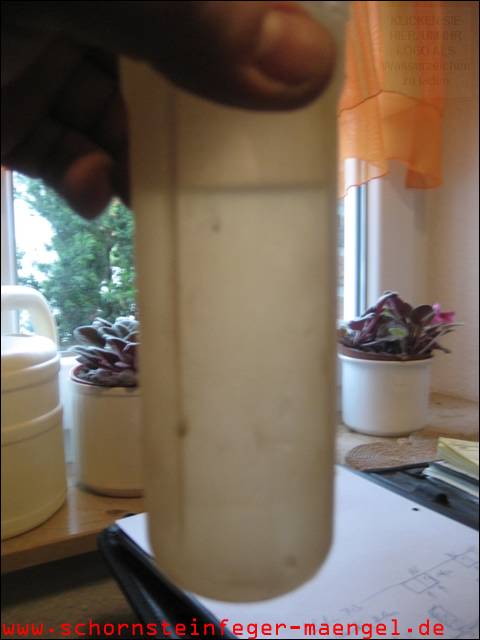

Siphon einer "jährlich gewarteten" Anlage verstopft! |

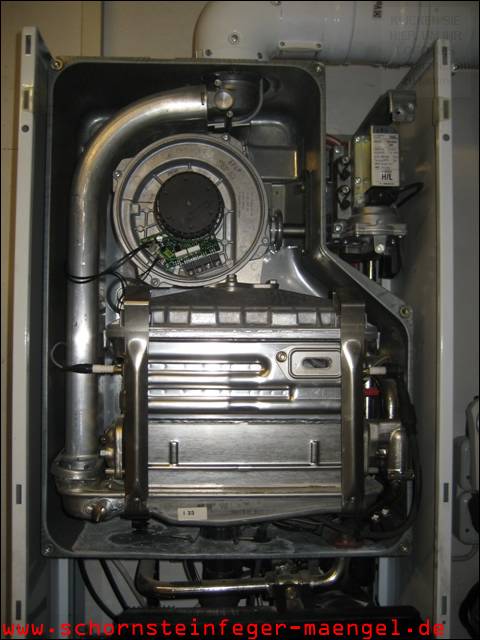

![](../photogallery/Brennwert/IMG_1430_small.jpg) ![](../photogallery/Brennwert/IMG_1429_small.jpg) ![](../photogallery/Brennwert/IMG_1427_small.jpg) ![](../photogallery/Brennwert/IMG_1428_small.jpg) |

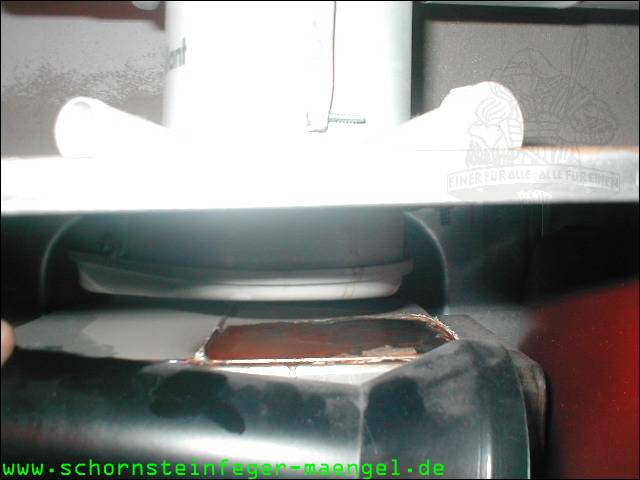

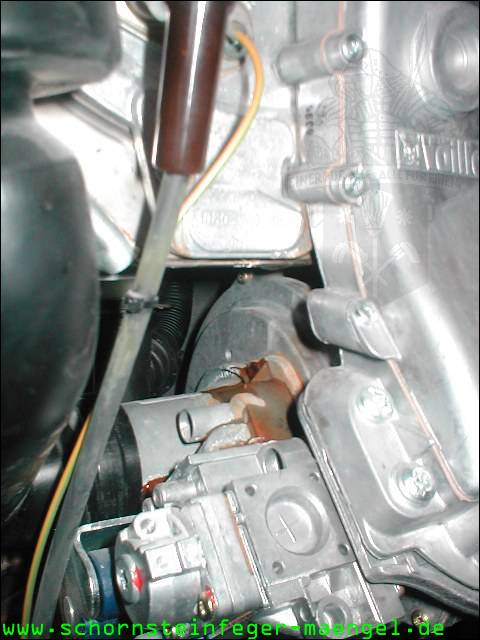

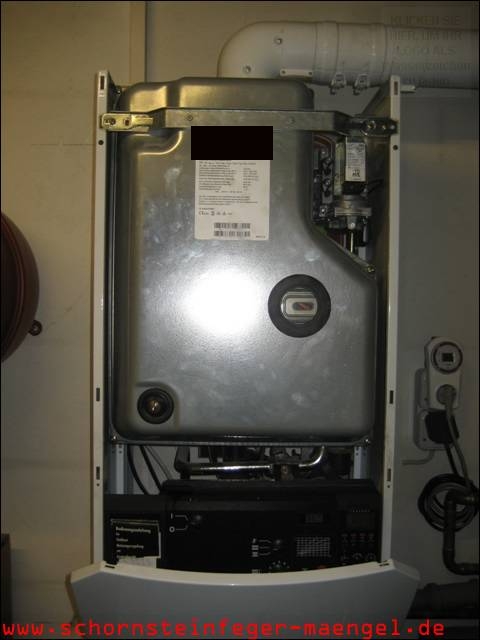

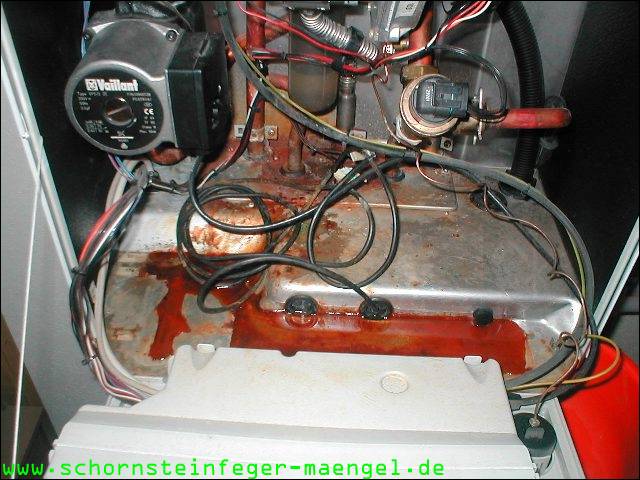

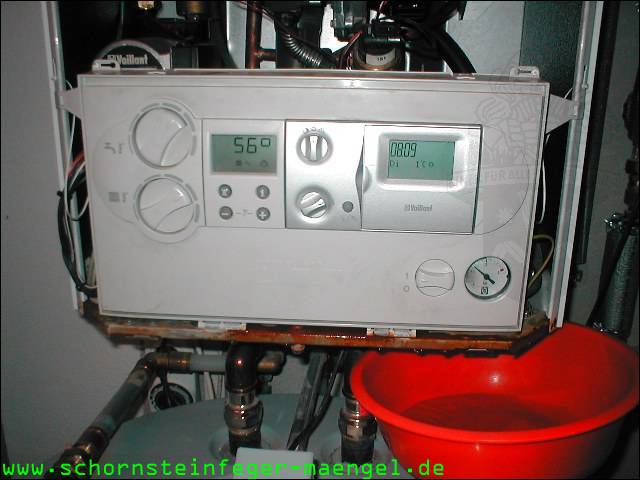

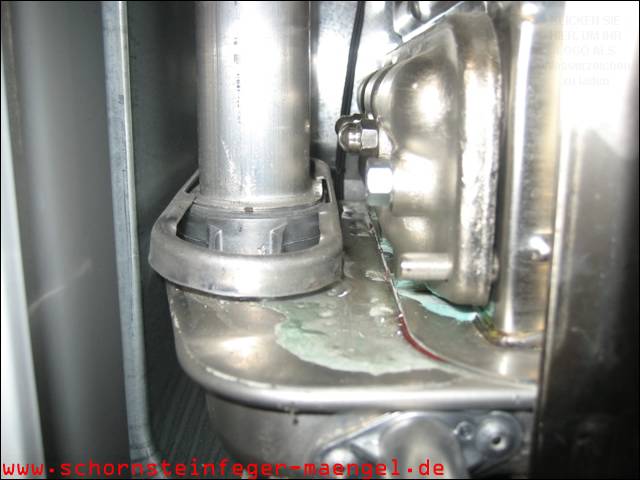

![](../photogallery/Brennwert/b141_small.jpg) ![](../photogallery/Brennwert/b142_small.jpg) ![](../photogallery/Brennwert/b144_small.jpg) ![](../photogallery/Brennwert/b143_small.jpg) Abgasleitung undicht - Kondensat
tropft auf auf Wärmetauscher, auf Gebläse und auf die Elektronik |
Viess... |

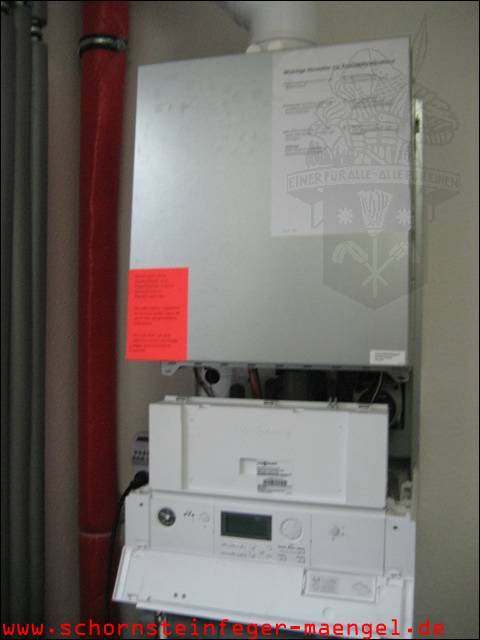

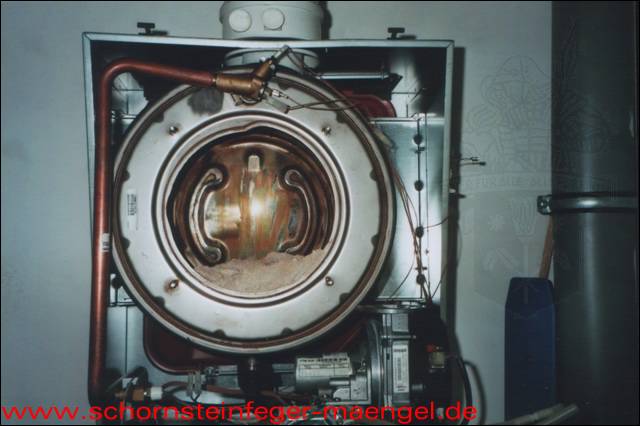

![](../photogallery/Brennwert/Viess-1_small.jpg) ![](../photogallery/Brennwert/Viess-2_small.jpg)

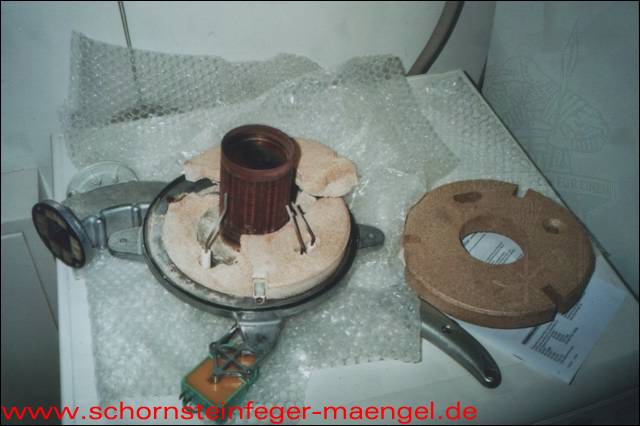

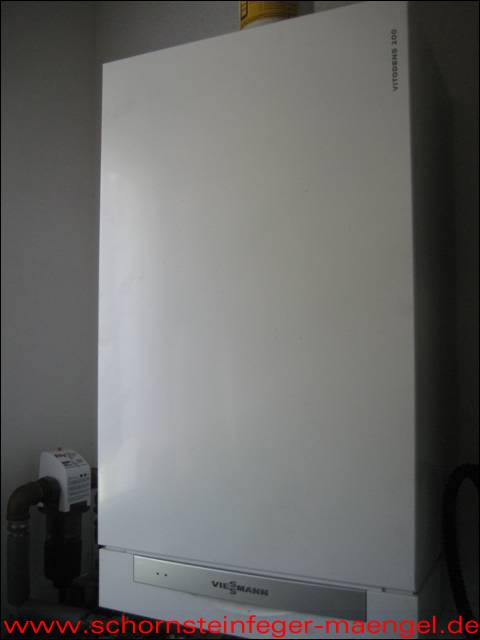

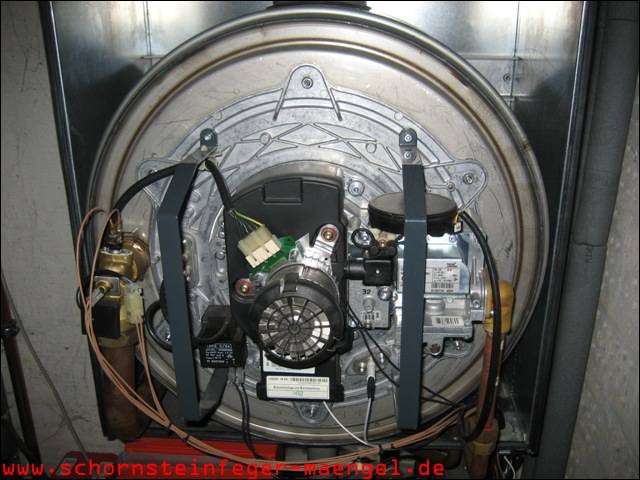

Vitodens 200 - Wärmedämmplatte im Brennraum defekt |

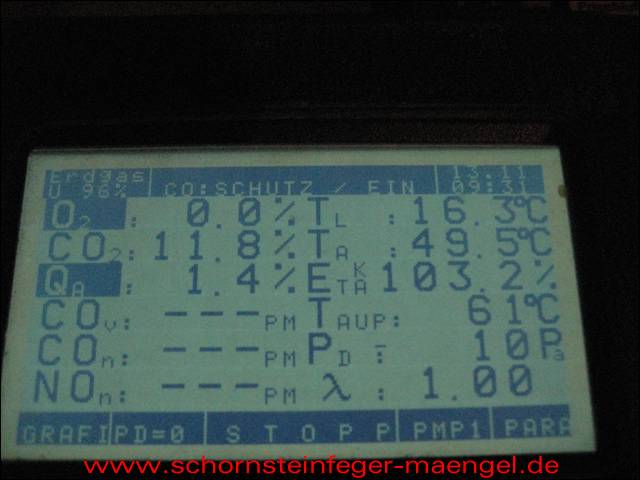

![](../photogallery/Brennwert/IMG_5032_small.jpg)

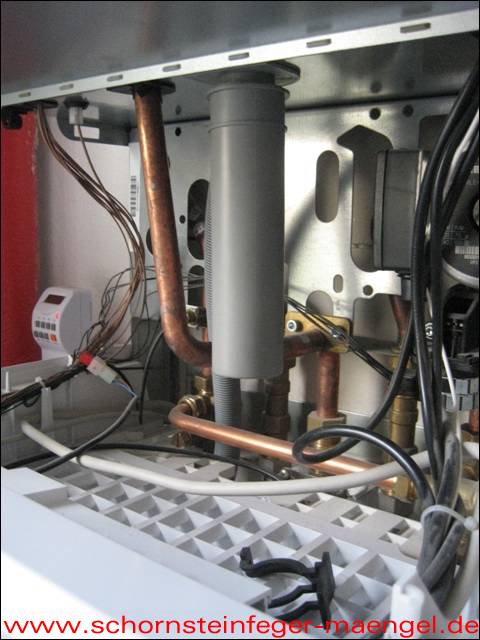

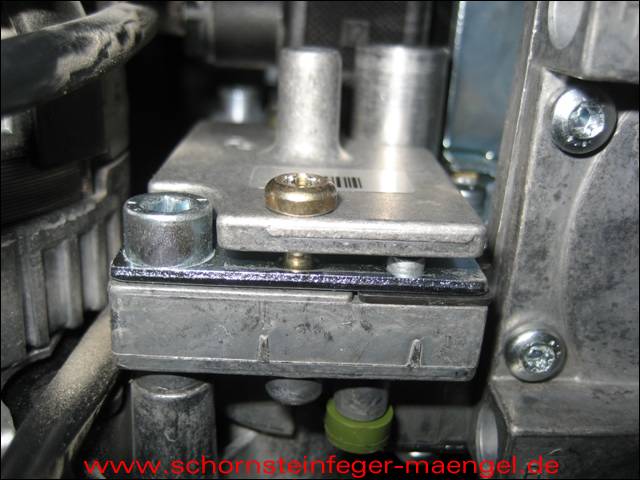

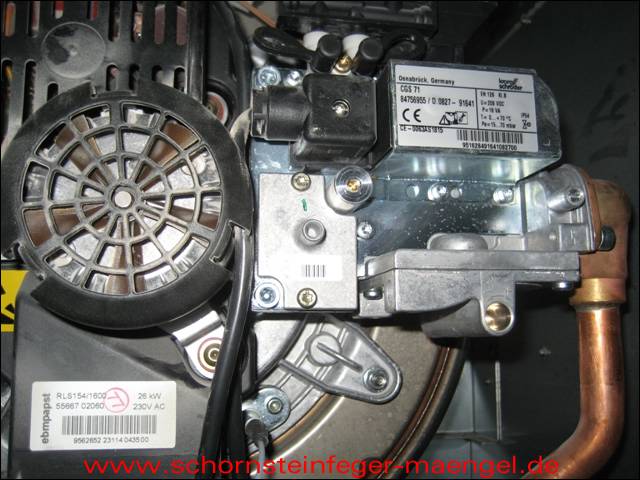

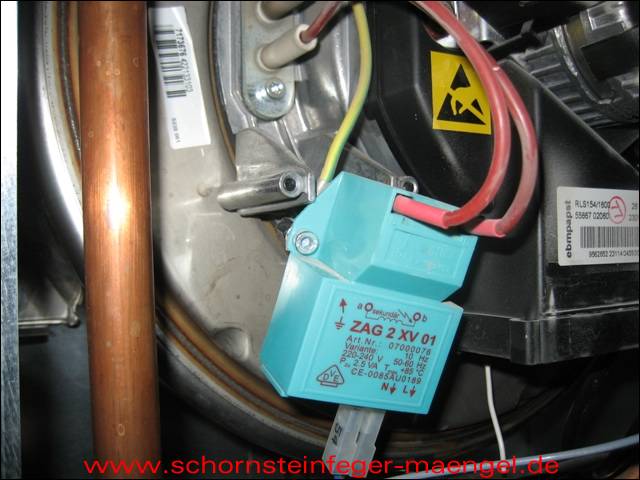

sehr schlechte Messergebnisse aufgrund der undichten Gasregelarmatur, Trafo
abgerissen, Siphonklemme nicht befestigt |

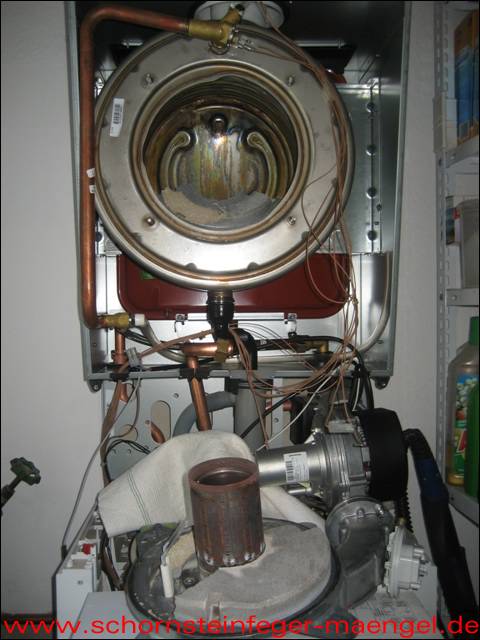

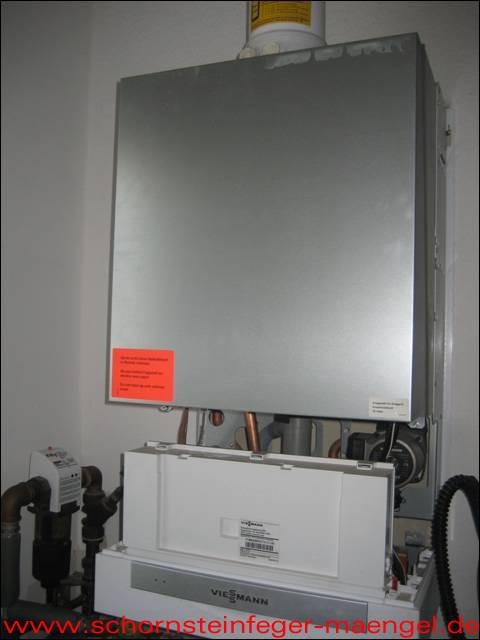

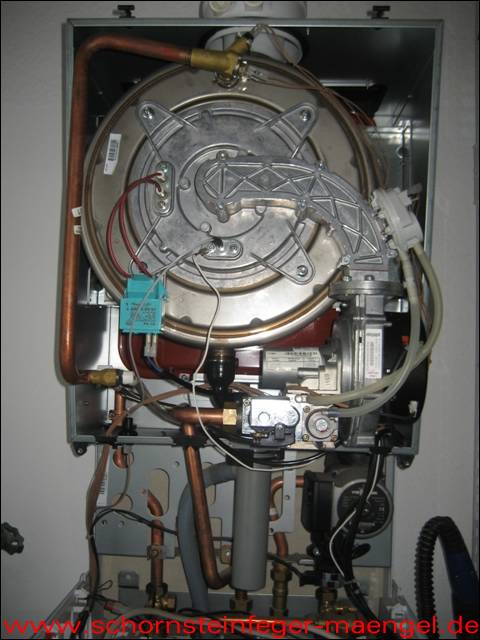

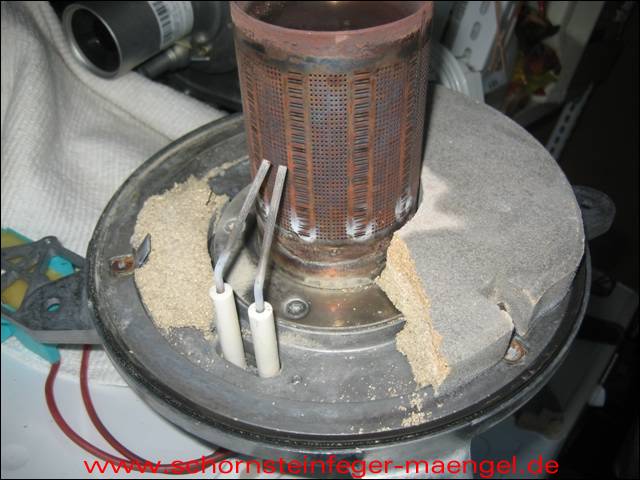

![](../photogallery/Brennwert/IMG_3091_small.jpg) ![](../photogallery/Brennwert/IMG_3093_small.jpg) ![](../photogallery/Brennwert/IMG_3087_small.jpg) ![](../photogallery/Brennwert/IMG_3086_small.jpg) ![](../photogallery/Brennwert/IMG_3083_small.jpg) ![](../photogallery/Brennwert/IMG_3085_small.jpg) Wärmedämmplatte im Brennraum defekt - starke Überhitzung der
Brennerplatte! |

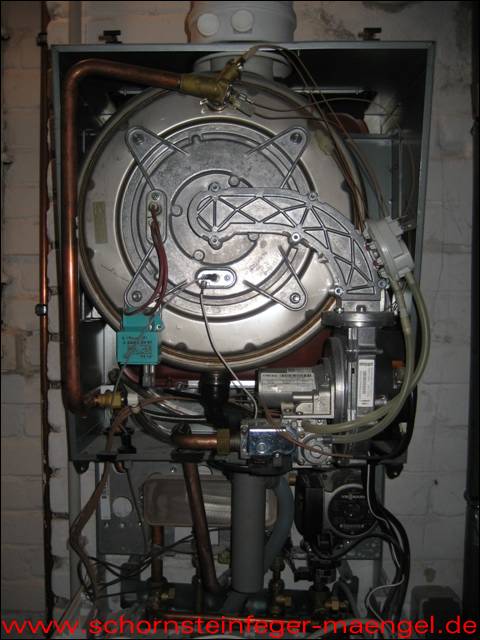

![](../photogallery/Brennwert/IMG_2197_small.jpg) ![](../photogallery/Brennwert/IMG_2193_small.jpg) ![](../photogallery/Brennwert/IMG_2194_small.jpg) ![](../photogallery/Brennwert/IMG_2195_small.jpg) ![](../photogallery/Brennwert/IMG_2196_small.jpg)

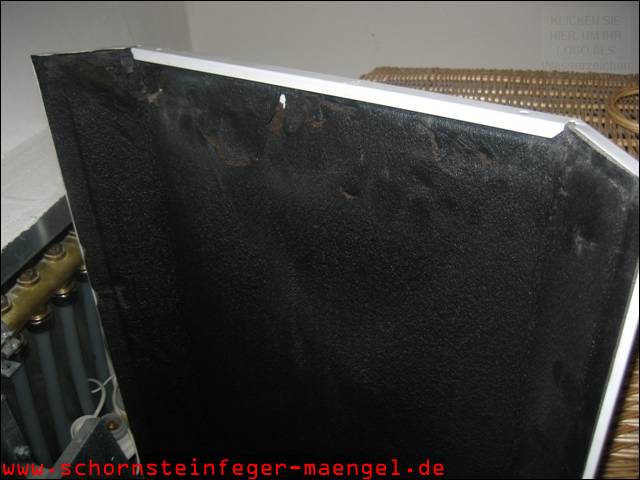

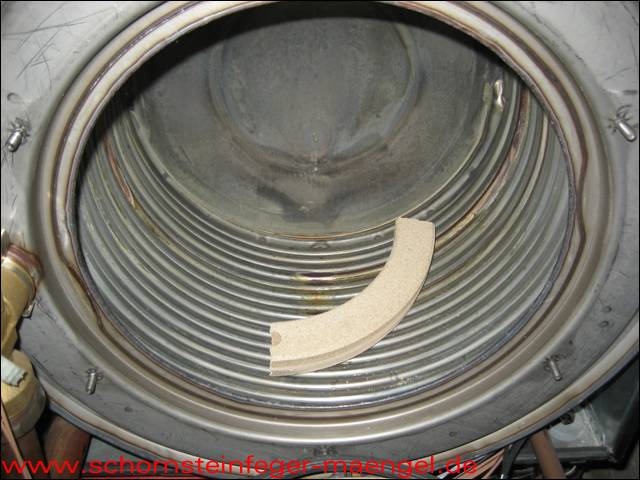

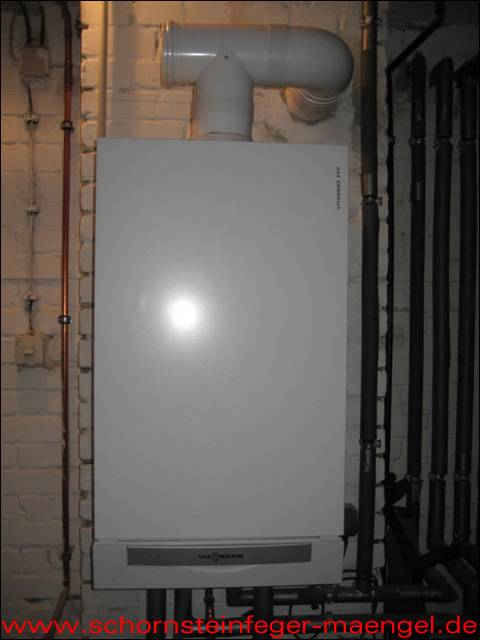

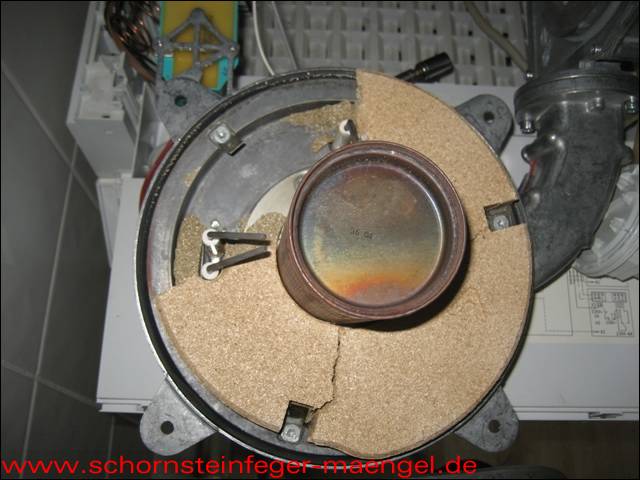

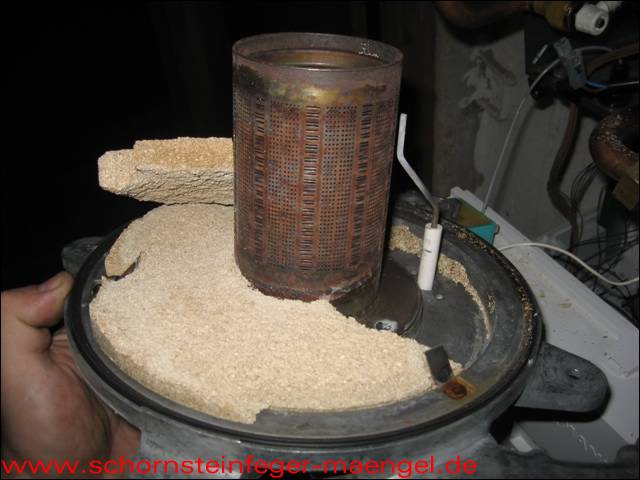

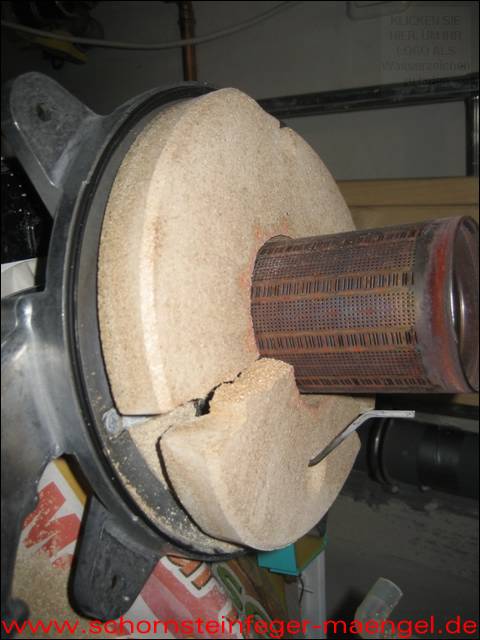

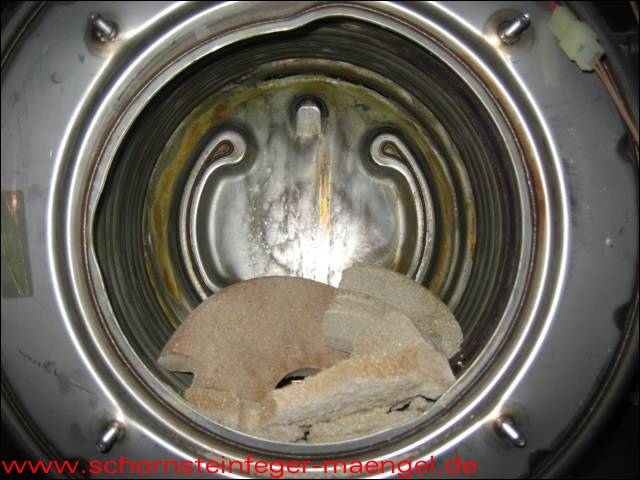

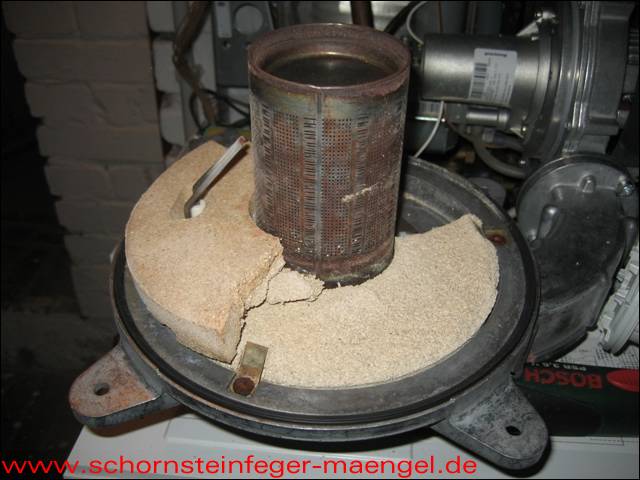

Wärmedämmplatte im Brennraum defekt - starke Überhitzung der
Brennerplatte! |

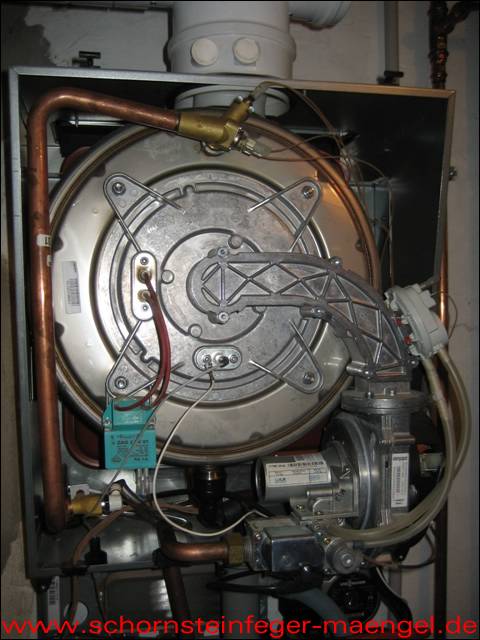

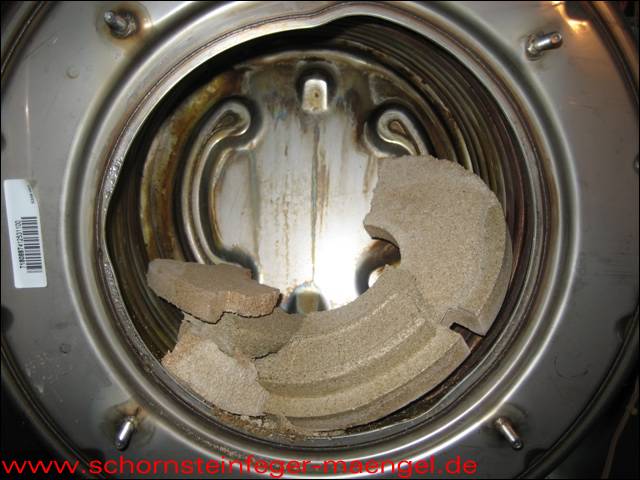

![](../photogallery/Brennwert/IMG_2205_small.jpg) ![](../photogallery/Brennwert/IMG_2206_small.jpg) ![](../photogallery/Brennwert/IMG_2198_small.jpg) ![](../photogallery/Brennwert/IMG_2203_small.jpg) ![](../photogallery/Brennwert/IMG_2204_small.jpg)

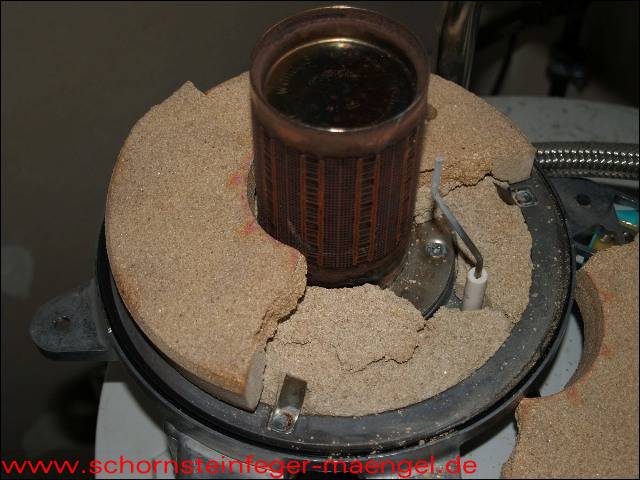

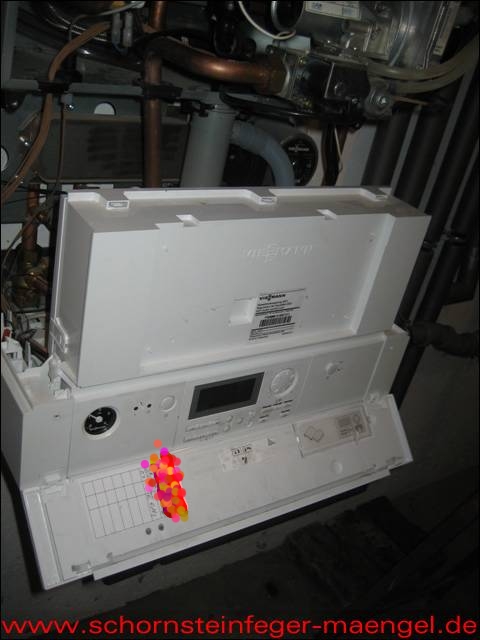

Wärmedämmplatte im Brennraum defekt - starke Überhitzung der
Brennerplatte! Trotz jährlicher Wartung! |
![](../photogallery/Brennwert/IMG_2276_small.jpg) ![](../photogallery/Brennwert/IMG_2274_small.jpg)

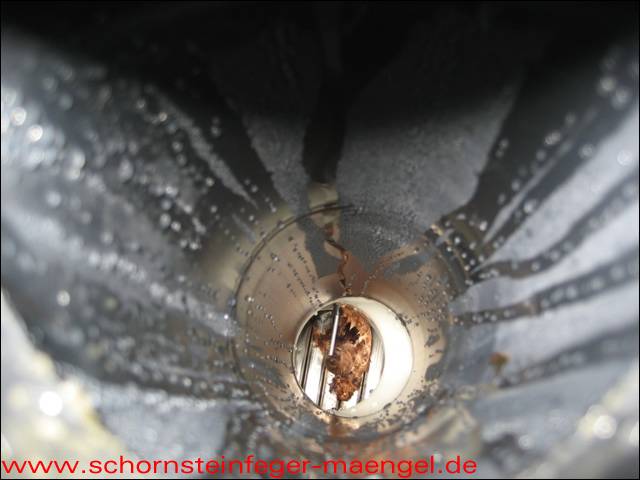

![](../photogallery/Brennwert/IMG_2289_small.jpg) ![](../photogallery/Brennwert/IMG_2287_small.jpg)

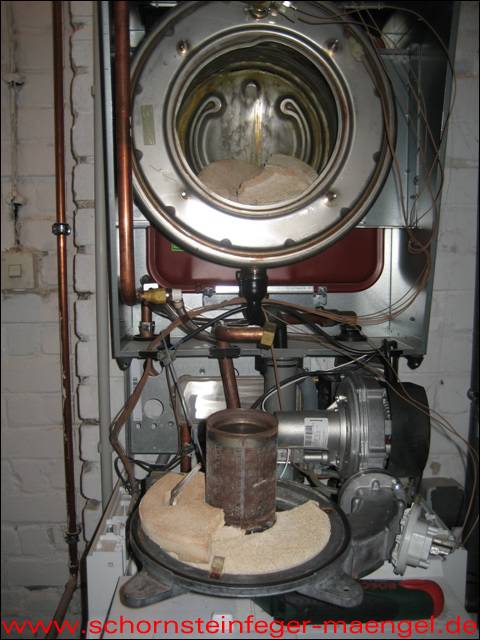

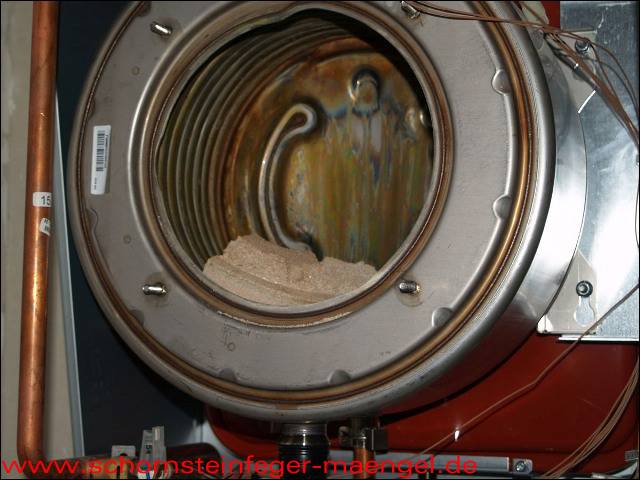

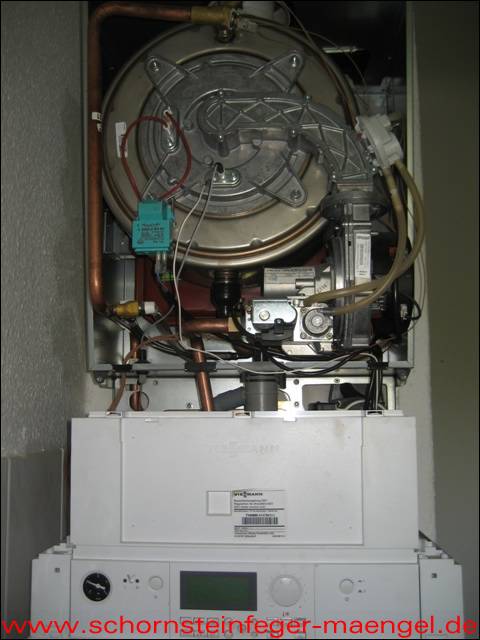

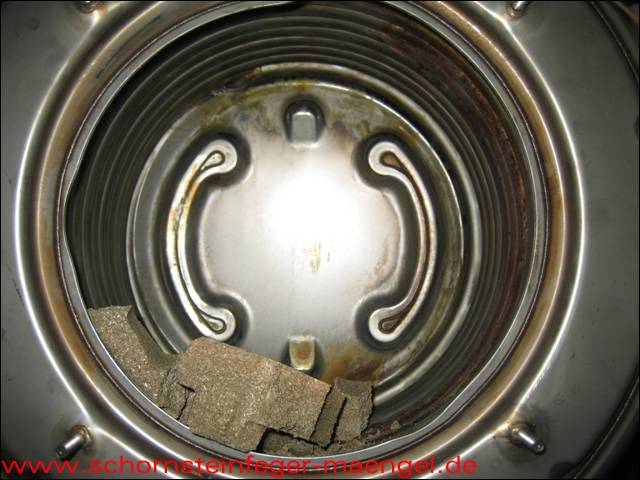

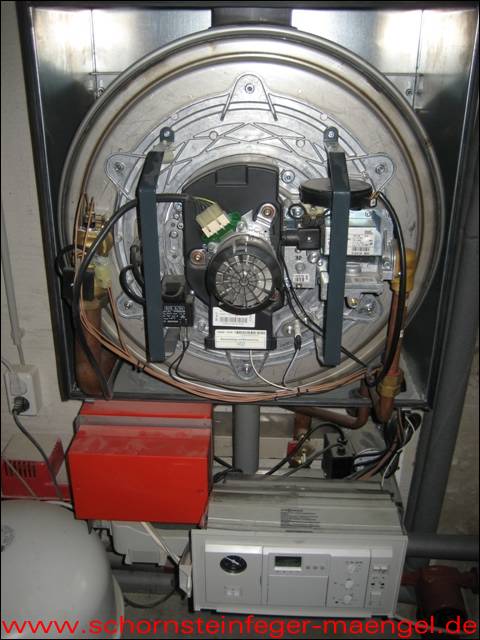

Wärmedämmplatte im Brennraum defekt - starke Überhitzung der
Brennerplatte! Vogelkadaver im Abgassystem auf dem Wärmetauscher! |

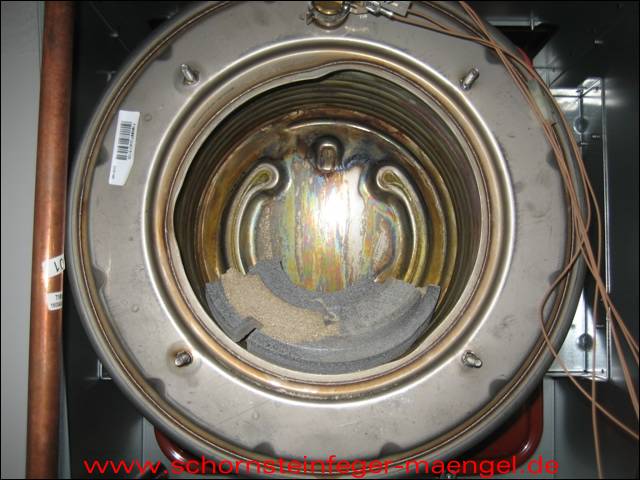

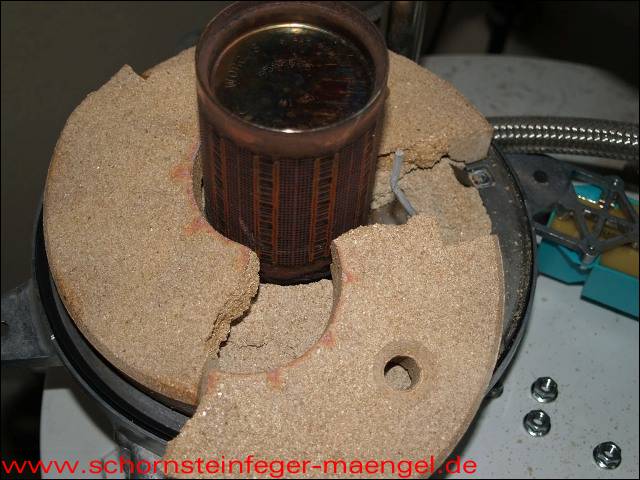

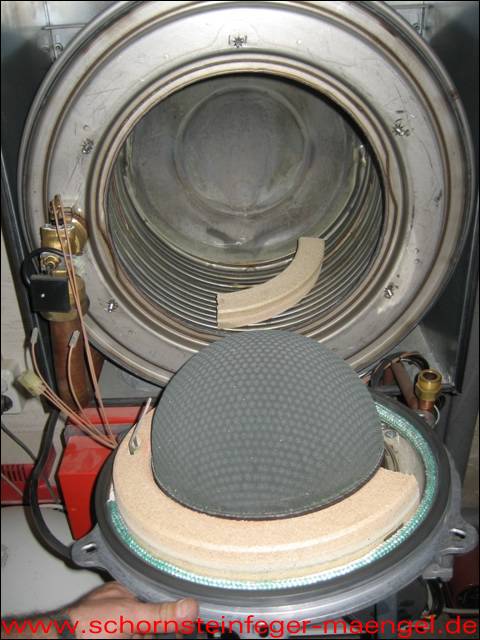

Wärmedämmplatte im Brennraum defekt - starke Überhitzung
der Brennerplatte! |
![](../photogallery/Brennwert/P4212648_small.jpg) ![](../photogallery/Brennwert/P4212654_small.jpg) ![](../photogallery/Brennwert/P4212655_small.jpg)

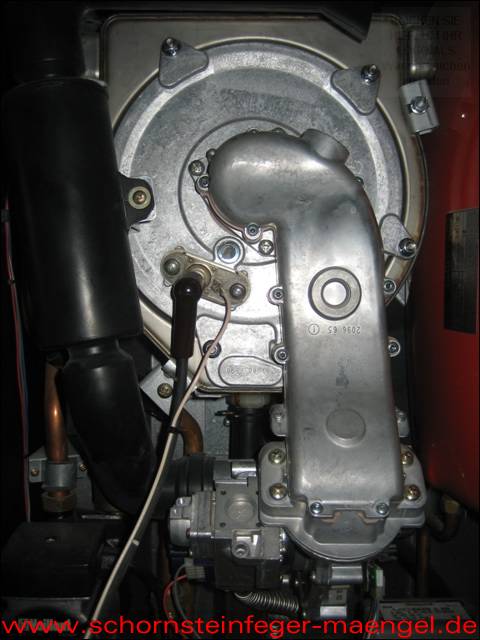

Wärmedämmplatte im Brennraum defekt - starke Überhitzung der
Brennerplatte! |

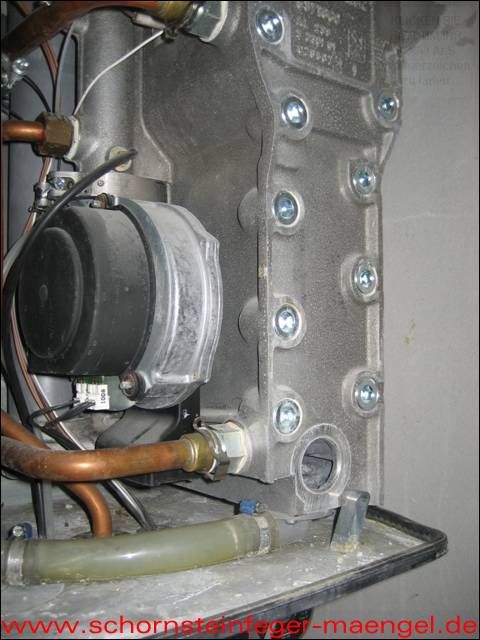

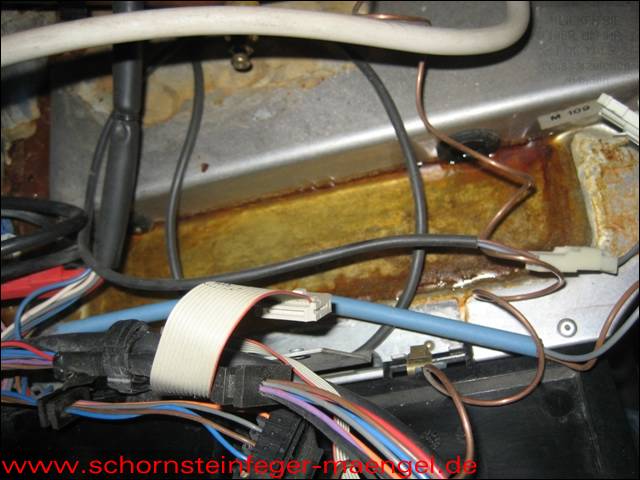

![](../photogallery/Brennwert/IMG_1938_small.jpg) ![](../photogallery/Brennwert/IMG_1933_small.jpg) ![](../photogallery/Brennwert/IMG_1935_small.jpg)

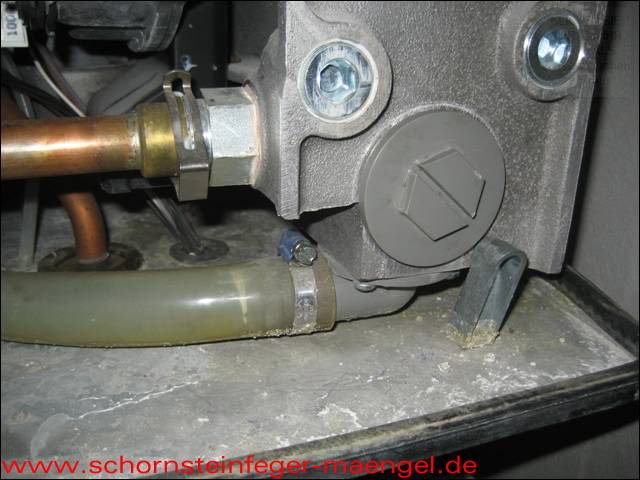

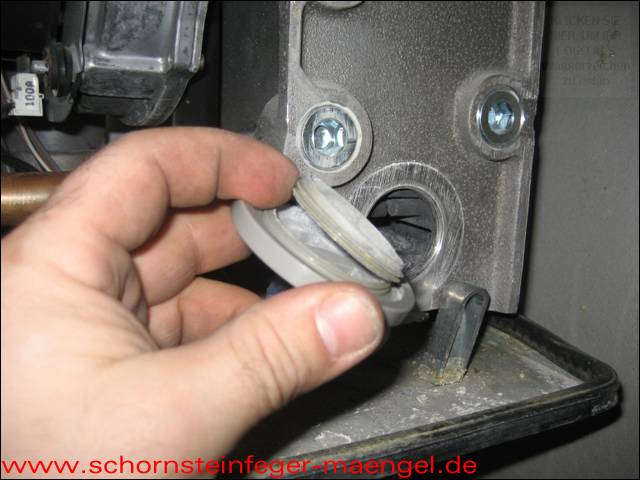

Reinigungsstutzen abgerissen! --> Abgasaustritt
innerhalb der Feuerstätte! |

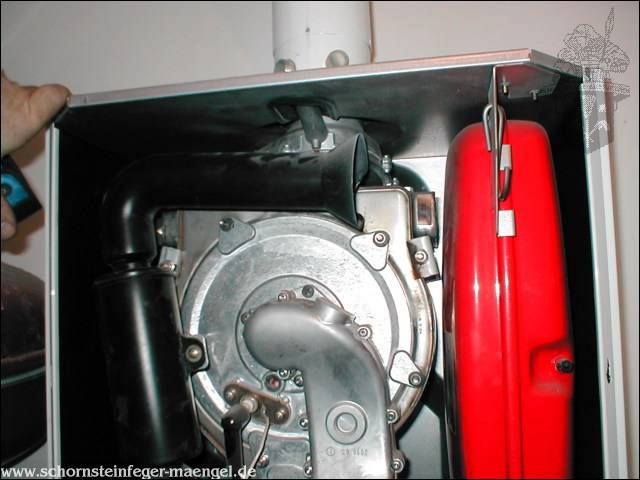

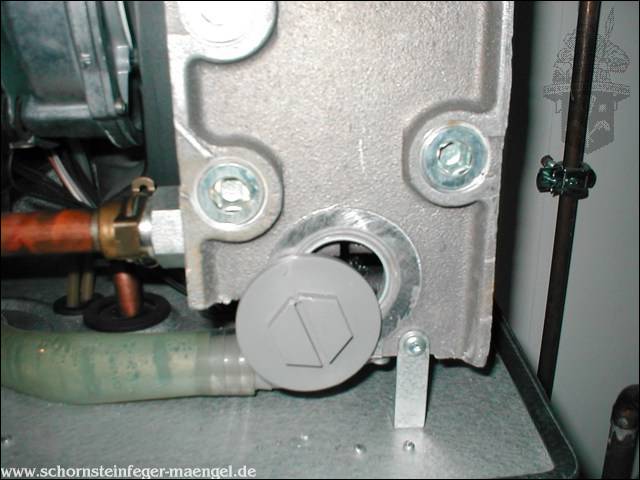

Siphon in Kondensatablauf fehlt - Abgasaustritt |
![](../photogallery/Brennwert/b042_small.jpg)

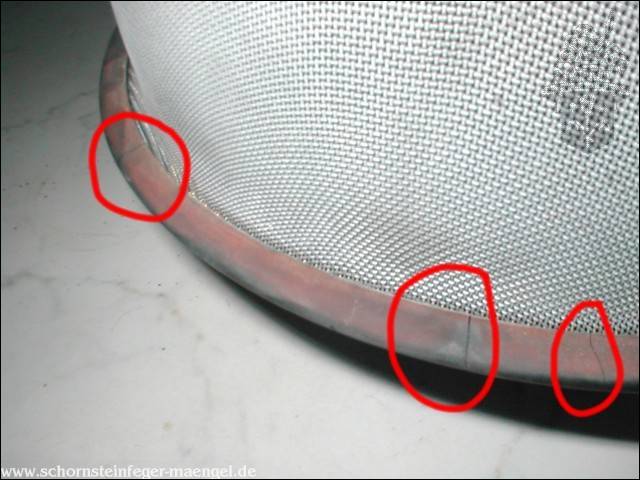

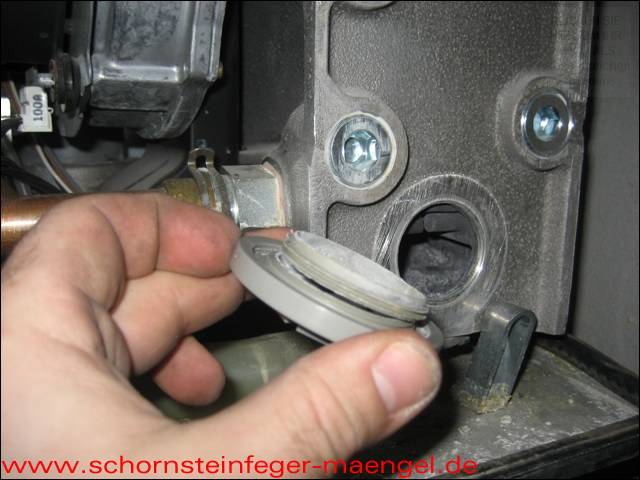

Reinigungsöffnung des Wärmetauschers abgeschmort - |

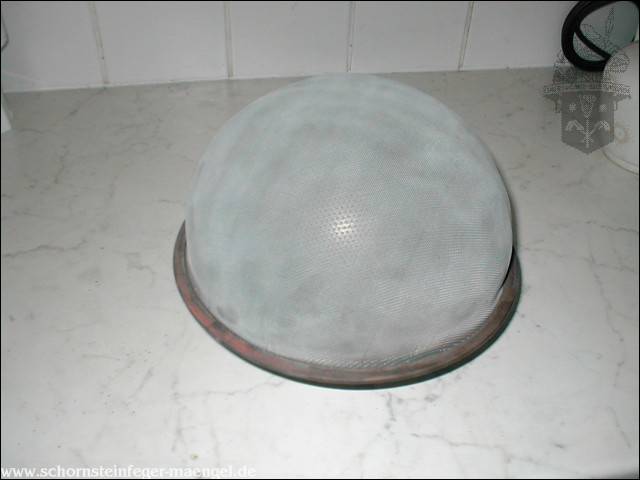

![](../photogallery/Brennwert/b049_small.jpg) ![](../photogallery/Brennwert/b050_small.jpg) Erdgasaustritt am Matrixbrenner, da
Brennermantel gerissen |
Endabnahme |
I. Termin |
II. Termin |
III. Termin |

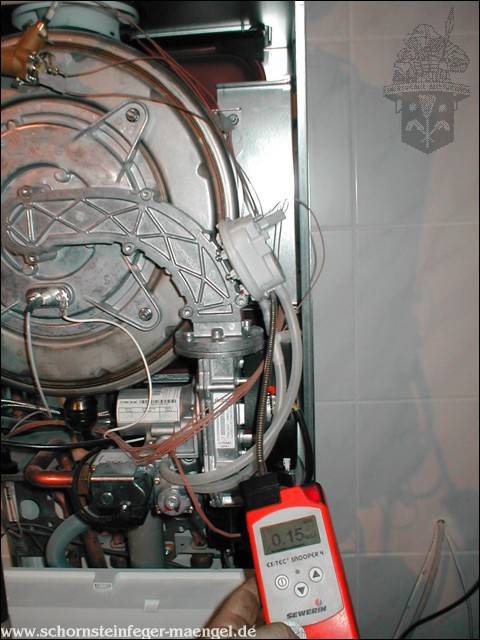

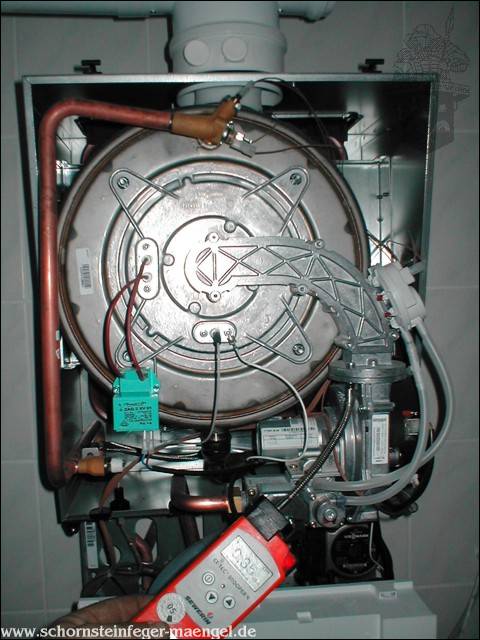

![](../photogallery/Brennwert/b064_small.jpg) Erdgasaustritt am Gebläse |
![](../photogallery/Brennwert/b072_small.JPG) Erdgasaustritt am Gasdruckwächter |

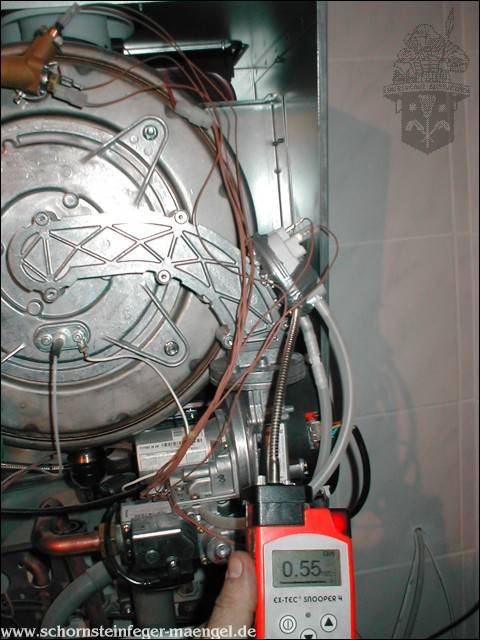

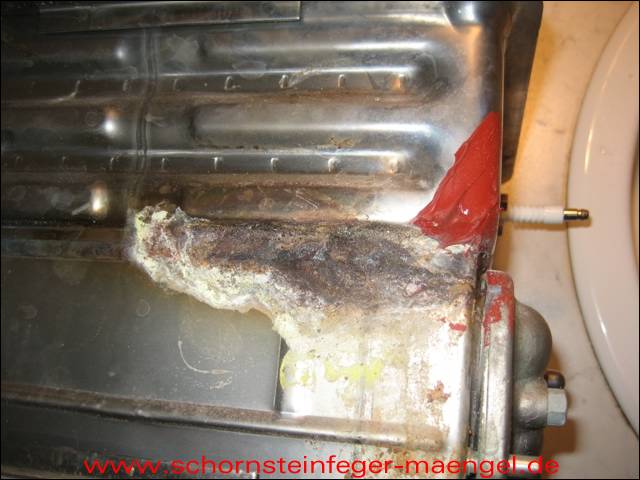

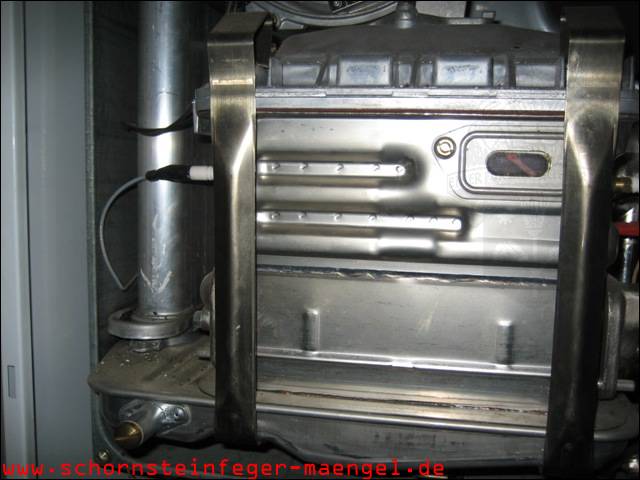

![](../photogallery/Brennwert/b073_small.JPG) ![](../photogallery/Brennwert/b071_small.jpg) Kundendienstmonteur von *

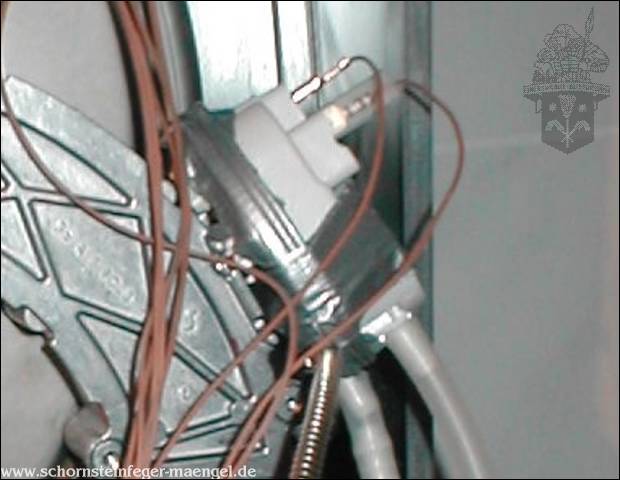

wickelte diesen einfach nur in Klebeband ein! dicht war es deshalb noch
lange nicht!!! |

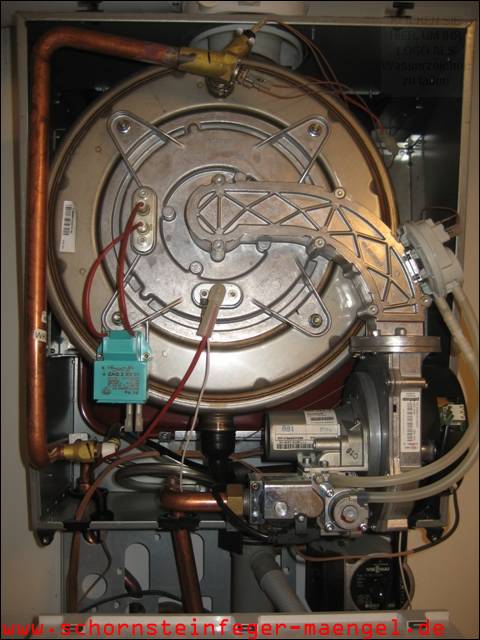

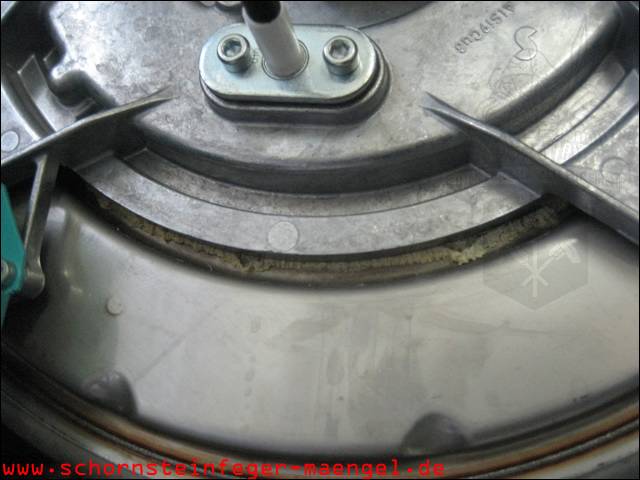

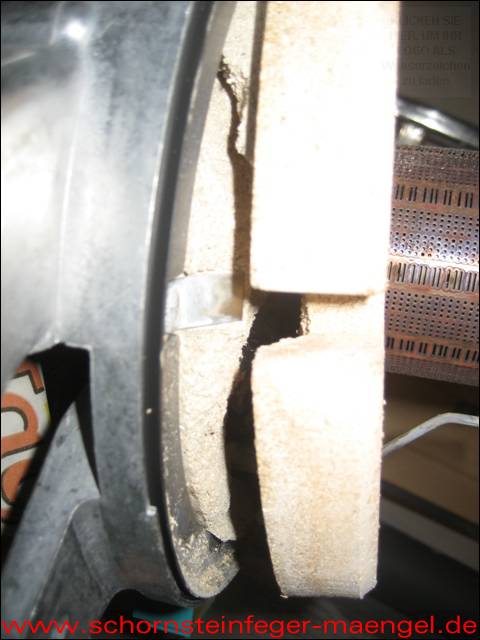

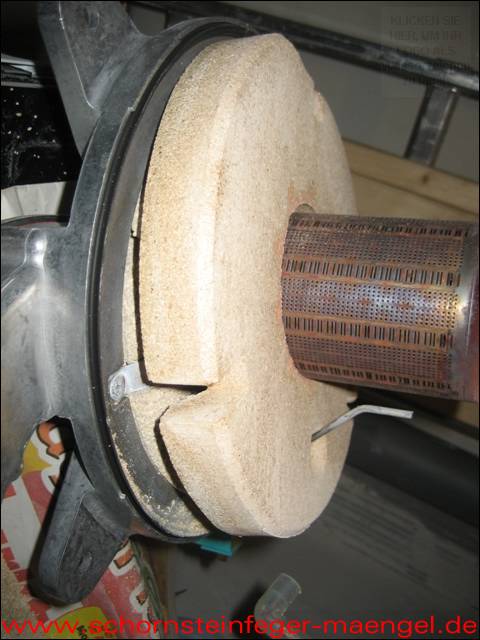

![](../photogallery/Brennwert/IMG_1440_small.jpg) ![](../photogallery/Brennwert/IMG_1625_small.jpg) ![](../photogallery/Brennwert/IMG_1628_small.jpg) ![](../photogallery/Brennwert/IMG_1626_small.jpg) ![](../photogallery/Brennwert/IMG_1627_small.jpg) Wiederkehrende Überprüfung einer 3 Jahre jungen und jährlich gewarteten

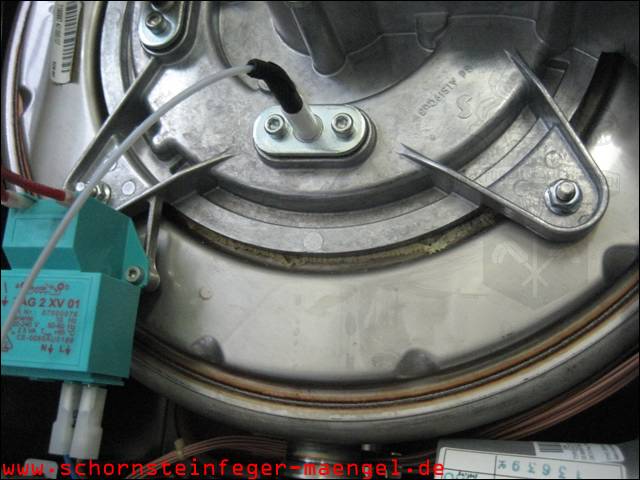

Anlage! Massiver Abgasaustritt und deutliche Überhitzung der
Brennerplatte innerhalb der Feuerstätte, da Brennerplattendämmung in sich
zusammengefallen - leider ein typisches Problem für dieses Gerät! |
![](../photogallery/Brennwert/IMG_0127-072_small.jpg)
Wiederkehrende Überprüfung einer 3 Jahre jungen und jährlich gewarteten
Anlage! Massiver Abgasaustritt und deutliche Überhitzung der
Brennerplatte innerhalb der Feuerstätte, da Brennerplattendämmung in sich
zusammengefallen - leider ein typisches Problem für dieses Gerät! |
![](../photogallery/Brennwert/b188_small.jpg)

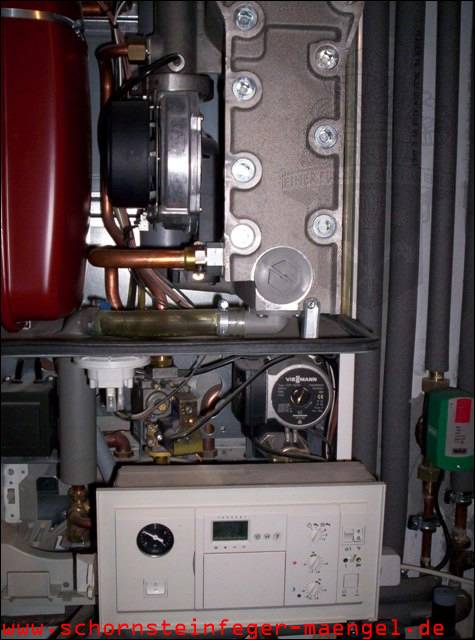

Abgasausritt innerhalb der Feuerstätte am Schauglas |

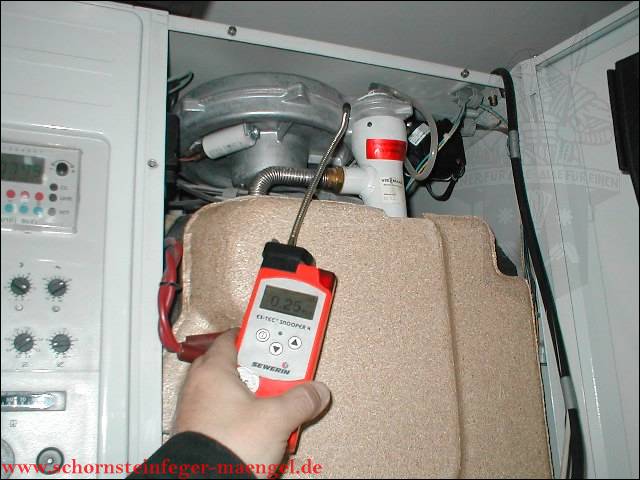

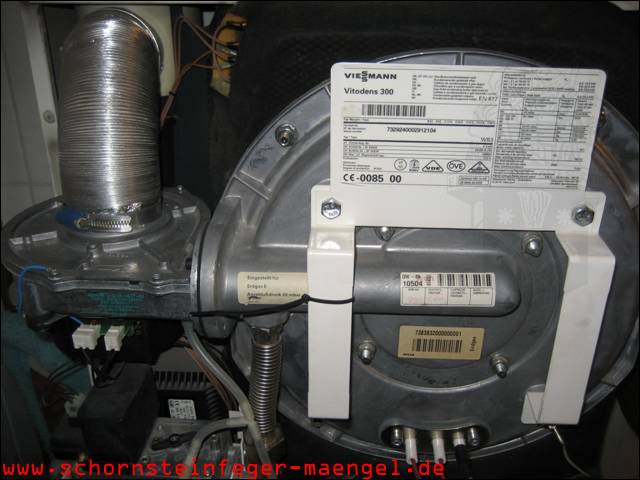

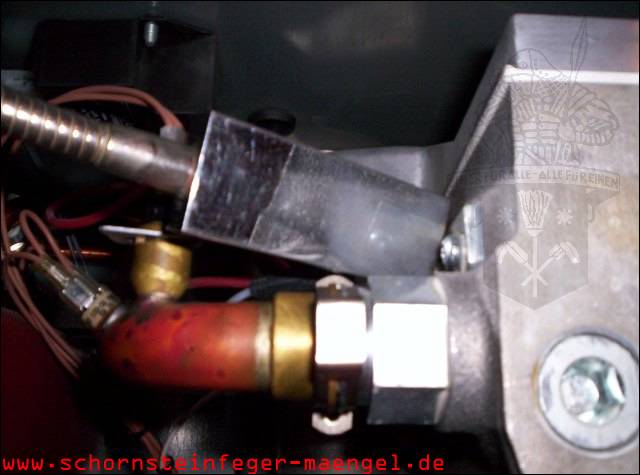

![](../photogallery/Brennwert/b102_small.jpg) Erdgasaustritt am Gebläse, da Dichtung defekt! |

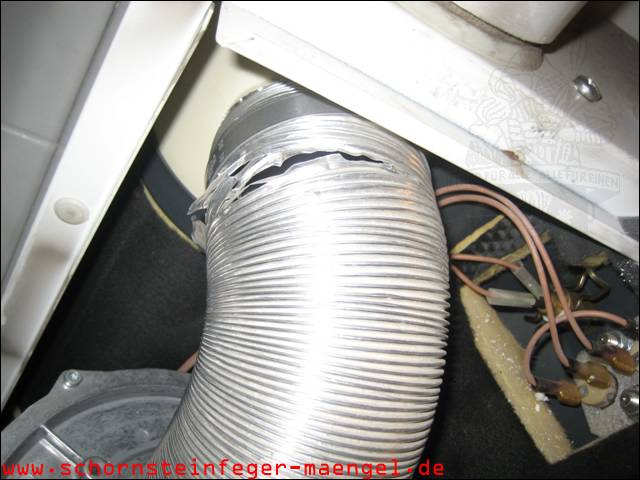

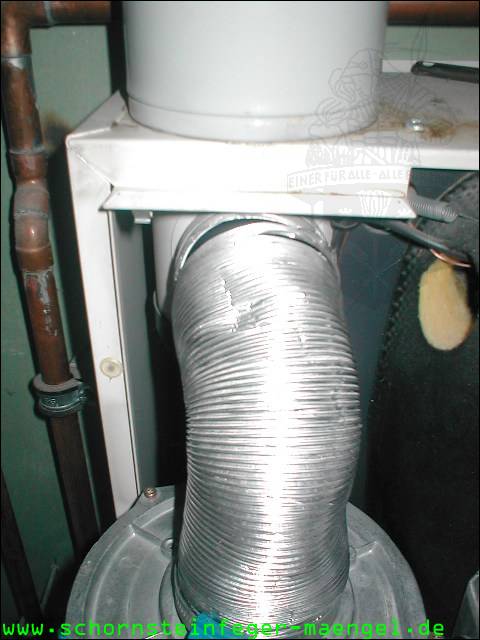

![](../photogallery/Brennwert/b137_small.jpg) Luftansaugrohr gerissen
- dadurch ist diese Feuerstätte raumluftabhängig! |

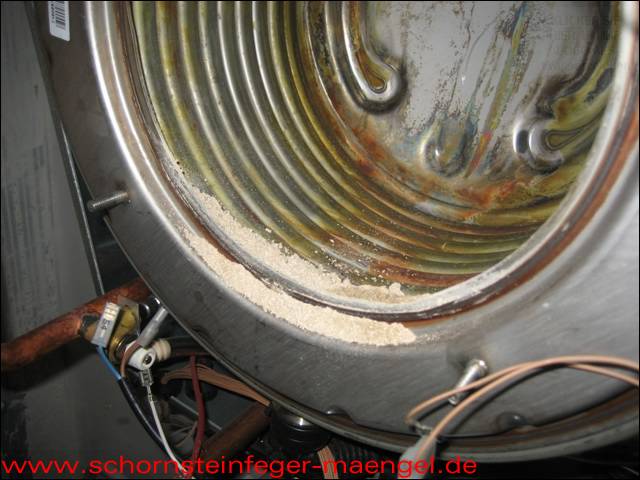

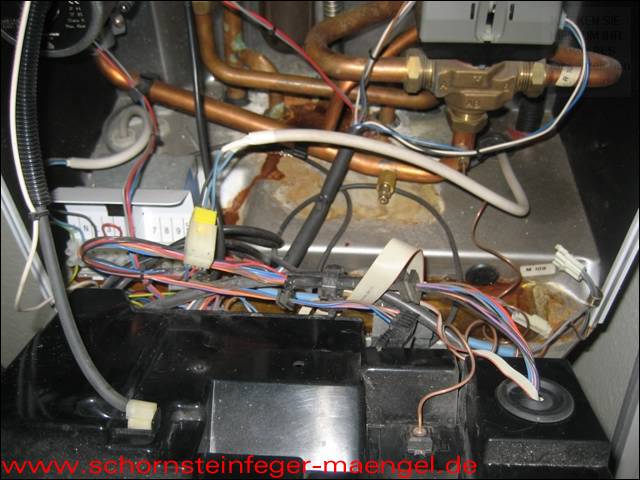

jährlich gewartete Anlage: Wärmetauscher an der Umwälzpumpe durchgerostet |

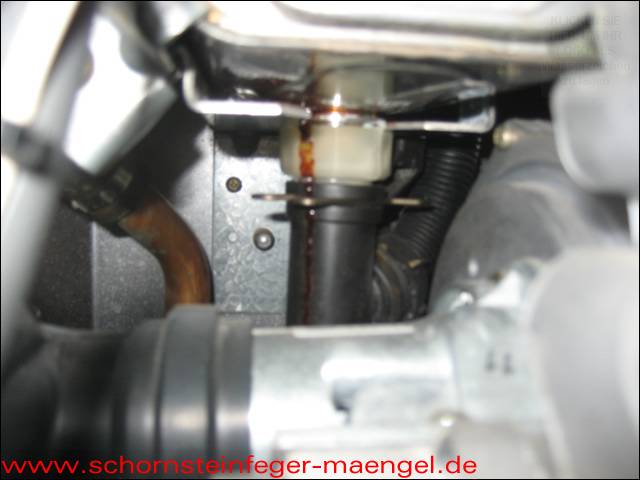

![](../photogallery/Brennwert/b077_small.jpg) Kondensataustritt am Siphon, da
Kondensatableitung durchgerostet |
![](../photogallery/Brennwert/b241_small.jpg)

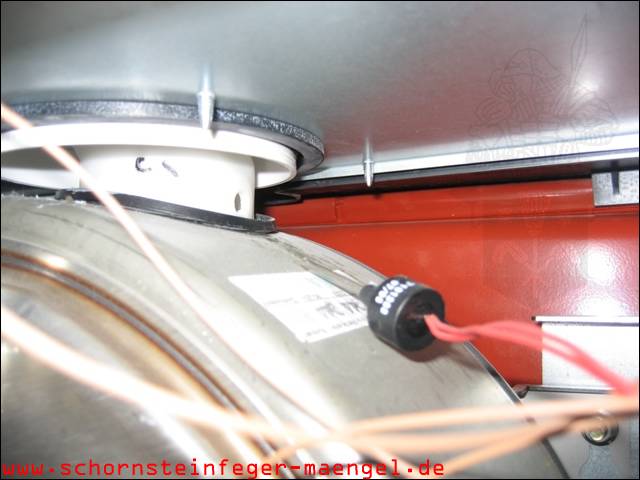

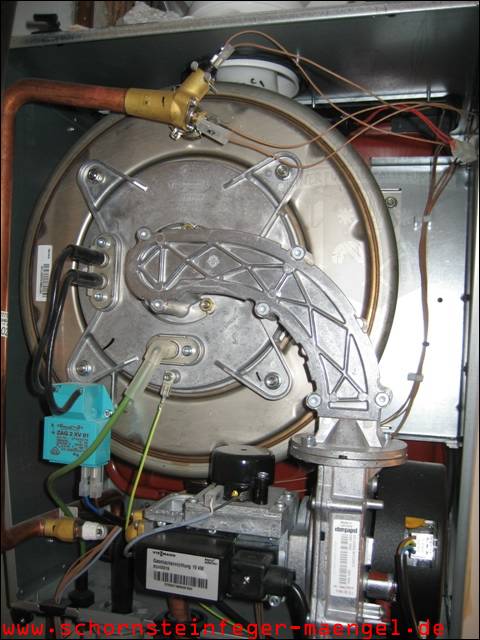

Lambdasonde einer neu errichteten Anlage innerhalb der Feuerstätte nicht
eingebaut - schlechte Messergebnisse und Abgasaustritt waren die Folge |

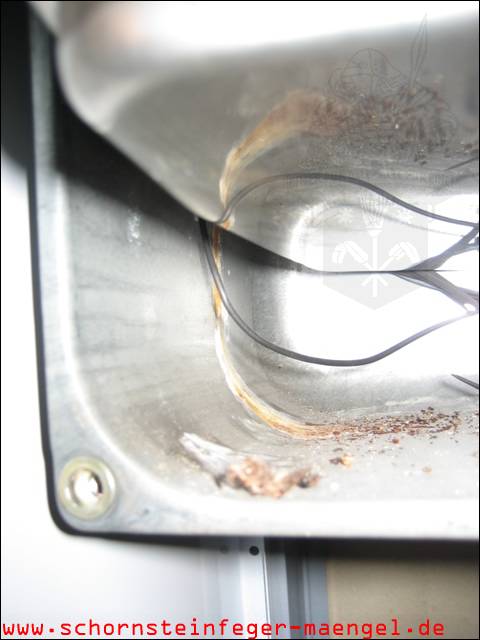

Undichtigkeiten im Abgasstutzen! Kondensat läuft in Verbrennungsluftraum! |
![](../photogallery/Brennwert/IMG_6515_small.jpg) ![](../photogallery/Brennwert/IMG_6514_small.jpg)
Luftansaugrohr innerhalb der Feuerstätte gerissen! |

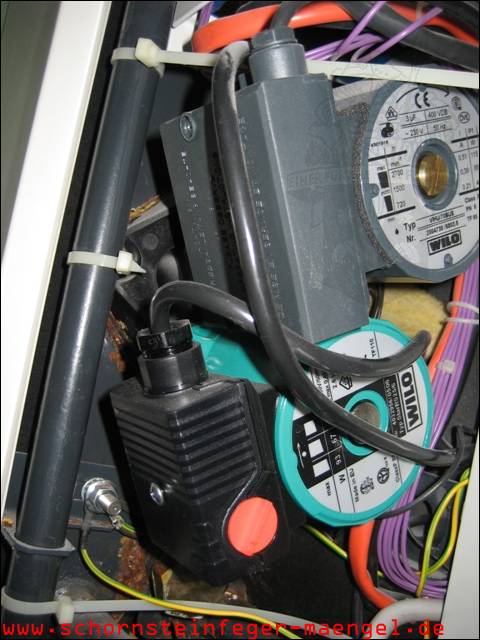

![](../photogallery/Brennwert/IMG_0127-079_small.jpg)

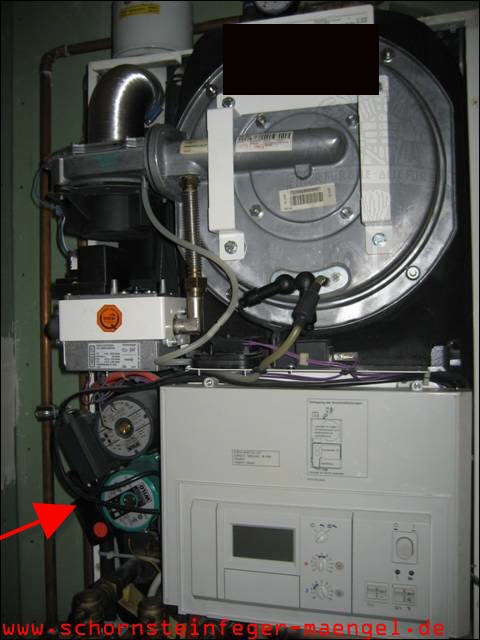

Wieder einmal - Kessel am Flansch der Umwälzpumpen durchgerostet - Anlage
wird jährlich gewartet und Monteur war ein Tag zuvor da und hat gesagt alles
in Ordnung!
|
![](../photogallery/Brennwert/IMG_1182_small.jpg) ![](../photogallery/Brennwert/IMG_1186_small.jpg) ![](../photogallery/Brennwert/IMG_1183_small.jpg)

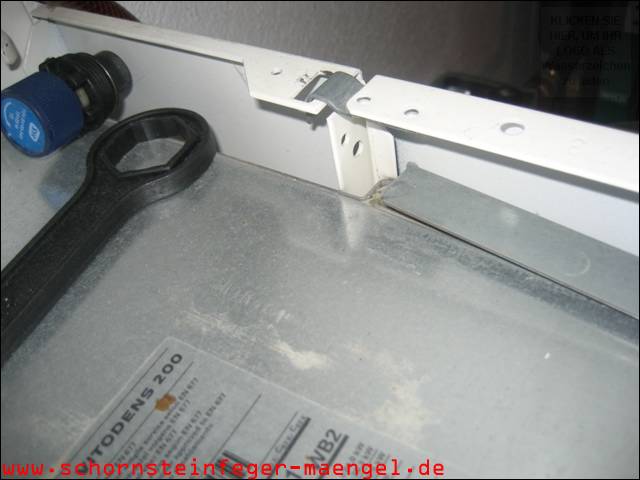

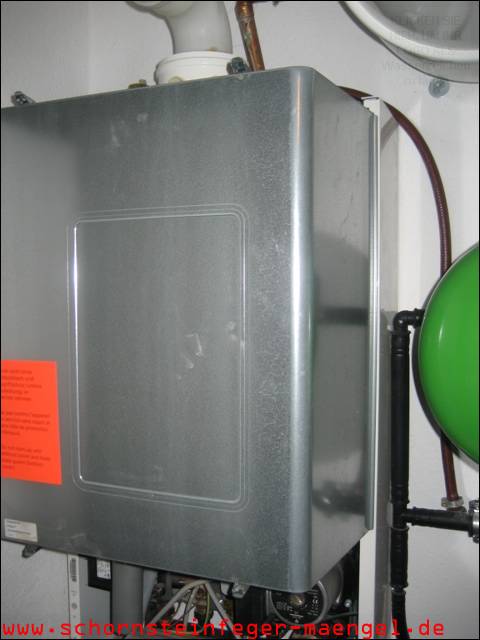

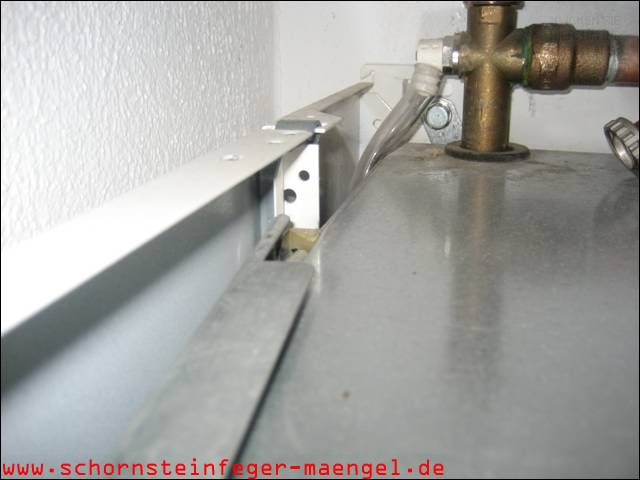

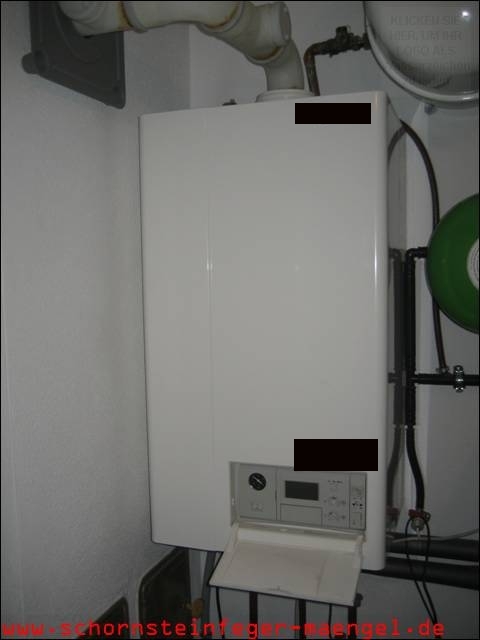

Verkleidung nach Wartung nicht richtig drauf gesetzt! |
|
